Description
NGP 896VDKB 84″ ADA Compliant DKB Bumper Threshold, 1/2″ x 5″
NGP 896VDKB 84″ ADA Compliant DKB-finish Bumper Threshold is designed to enhance accessibility and safety in commercial restroom settings. Crafted from durable aluminum alloy 6063 with a T5 temper, this threshold features a robust 5″ width and a height of just 1/2″, ensuring a smooth transition between spaces while meeting ADA standards for accessible design. The fluted top not only adds a touch of style but also enhances grip, making it easier for individuals to navigate. Weighing only 0.85 lbs./ft., it is lightweight yet sturdy enough to provide reliable performance. This threshold comes with a black vinyl bumper seal, ensuring effective weatherproofing and reducing air infiltration, as verified by ASTM E283 testing. Included with the threshold are #10 x 1-1/2″ FH zinc-plated wood screws, ensuring easy installation, and the dark bronze finish adds a sleek, modern touch suitable for various decors. Additionally, the product is certified by UL and complies with various fire safety standards, making it a dependable choice for any commercial environment.Choose the NGP 896VDKB for its combination of functionality, safety compliance, and aesthetic appeal-an essential component for any restroom partition setup.

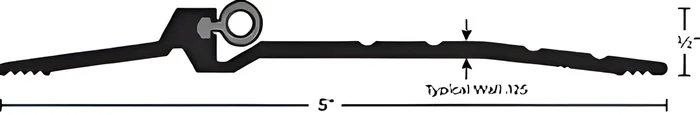

84″ ADA Compliant DKB-finish Bumper Threshold, 1/2″ x 5″
- #10 x 1-1/2″ FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
- 5″ wide x 1/2″ tall
- Fluted top
- Vinyl bumper seal is black
- Aluminum alloy 6063, T5 temper
- Weight: .85 lbs./ft.
- Dark bronze finish
- Typical Wall Thickness: .125″
Attributes
Color: Vinyl bumper seal is black
Dimensions: 5″ wide x 1/2″ tall
Fasteners: #10 x 1-1/2″ FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
Finish: Dark bronze finish
Length: 84.0″
Material: Aluminum alloy 6063, T5 temper
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Standard-4: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Wall Thickness: Typical Wall Thickness: .125″
Weight: Weight: .85 lbs./ft.
