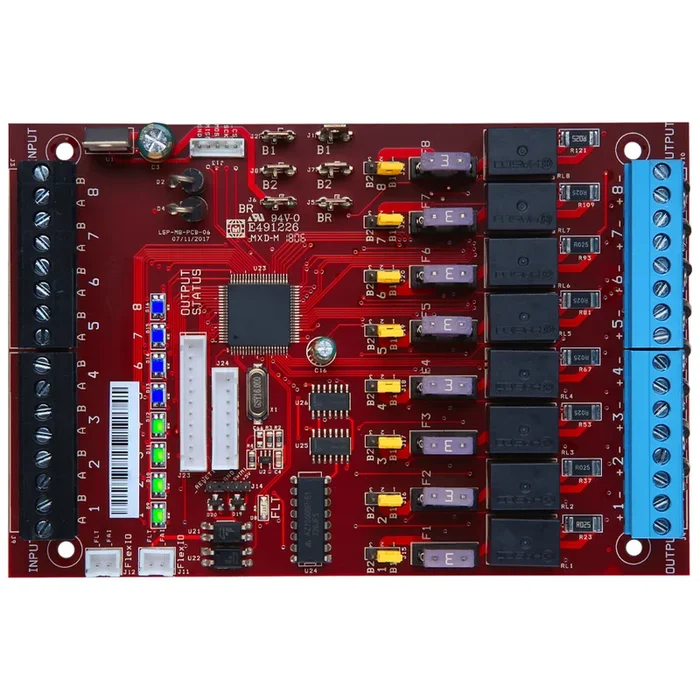

Lifesafety Power M8-BOXED 8 Output Managed Lock Distribution Module, Fused

Lifesafety Power Inc M8-BOXED 8 Output Managed Lock Distribution Module is an advanced solution designed for efficient and reliable access control. This smart power controller seamlessly integrates with NL4 or NLX network modules, providing eight monitored and controlled voltage outputs that can be accessed remotely via the internet. Each of the eight outputs is programmable for various modes, including fail-safe, fail-secure, and fire alarm overrides, ensuring flexibility for different security applications. Featuring dual color LEDs, the M8-BOXED allows for instant voltage verification, with green indicating 12V and blue for 24V. The unit supports both 12V and 24V DC input and has a maximum current input of 20 Amps, with each output capable of delivering up to 3A (fused) or 2.5A (power limited). The comprehensive design includes eight control inputs for voltage or dry contact activation, making it adaptable to various operational needs. Constructed with a fiberglass PCB for enhanced environmental performance, the M8-BOXED is RoHS compliant, ensuring it meets modern standards for safety and sustainability. Whether you’re a building professional or an informed homeowner, this module offers a robust solution for your security systems, making it an invaluable addition to your access control setup.

8 Output Managed Lock Distribution Module, Fused

Notice: The info below is not item specific.

The M8 smart power controller communicates with an NL4 or NLX network module and provides eight (8) monitored and controlled voltage outputs accessible from a network or the internet. Optional RS485 connection for remote monitoring by NLX using RSMOD (not included). The M8 provides eight (8) control inputs capable of voltage or dry contact activation and eight (8) controlled and monitored outputs, with each output network programmable for fail-safe, fail-secure, fire alarm over ride, and AC loss over ride for egress lock control. Each output is also programmable to either of two voltages available when used in a dual voltage iSCAN power system. OutSmart dual color LEDs visually indicate voltage levels by output (green for 12V, blue for 24V). One output is selectable as a network controllable dry relay output. Each output may also be individually enabled/disabled through a browser interface and the voltage and current of each output may be monitored via network or internet, and trigger points may be set up on each output to generate an alert when that output is outside of selected parameters.

Features:

• Comprehensive output zone control
• Provides installer selectable output voltage, when used in a dual voltage system
• Visual voltage verification – output LED changes color based on voltage setting (12V/green, 24V/blue)
• Dual voltage buss and prewired cables connect the M8 to the power supply or additional accessory modules
• Fiberglass PCB for improved environmental performance, high efficiency operation
• RoHS compliant

Specifications:

• Input Voltage: 12 and/or 24 VDC
• Input Current: 20 Amps max
• Output Voltage: 12 / 24 VDC
• Current / Output: 3A (fused), 2.5A (pwr ltd)
• Current Measurement Range: 0 – 3.0 Amps
• Voltage Measurement Range: 0 – 30 Volts
• Lock Outputs: 8
• Access Control Inputs: 8
• Fire Alarm Interface: Per output

Attributes

Alternate Codes: M8-BOXED, M8BOXED
