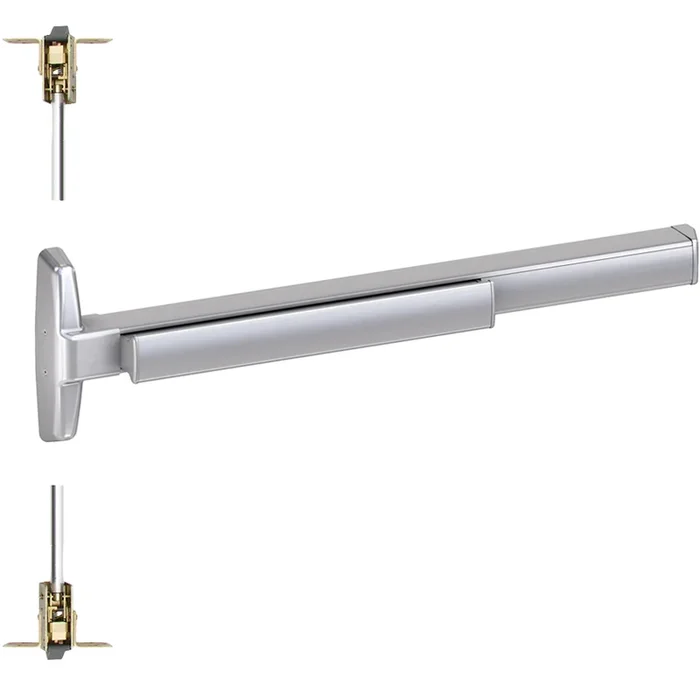

75 Series Fire-Rated CVR Exit Device by Von Duprin – Grade 1, Satin Chrome

Description

Von Duprin 7547EO-F-626-36 75 Series Fire-Rated CVR Exit Device, No Dogging, 36in x 84in, Satin Chrome

Von Duprin 7547EO-F-626-36 75 Series Fire-Rated CVR Exit Device offers a reliable and secure solution for emergency exits in commercial and residential settings. This concealed vertical rod exit device is UL listed for fire exit hardware and certified to ANSI/BHMA A156.3 Grade 1 standards, ensuring top-tier performance and safety.Designed for doors measuring 36 inches by 84 inches, the 7547EO-F features a deadlocking latch bolt with a 5/8-inch throw, providing enhanced security. The pushbar has a neutral projection of 3-13/16 inches, which reduces the risk of accidental activation while maintaining ease of use during emergencies. Additionally, the field-selectable functions allow for versatile installation options. This exit device is built to accommodate doors with a thickness of 1-3/4 inches and is suitable for narrow stile aluminum frames. The satin chrome finish adds a modern touch while ensuring durability. With no mechanical dogging feature and multiple electrified options available, it can be customized to meet specific access control needs. The Von Duprin 7547EO-F exit device is an essential component for anyone looking to enhance safety and compliance in their building, making it an ideal choice for professionals in the security and construction industries.

75 Series Fire-Rated CVR (Concealed Vertical Rod) Exit Device, No Dogging, No Trim, 36in x 84in, Grade 1, 626/US26D Satin Chrome

Notice: The info below is not item specific.

7547-F Fire exit concealed vertical rod device are certified to ANSI/BHMA A156.3 2014, grade 1 and UL listed for fire exit hardware.

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable
• Center Case: 9″ x 1-5/8″ x 2-3/8″ (229mm x 41mm x 60mm)
• Device lengths:
• 3′: 2′ 6″ to 3′ (762mm to 914mm) door size
• 4′: 3′ to 4′ (914mm to 1219mm) door size
• Device centerline from finished floor:
• 39-13/16″ (1011mm)
• 39-11/16″ (1008mm) with mullion
• Mechanism Case: 2-5/16″ x 2-1/8″ (59mm x 54mm)
• Latch Bolt: Deadlocking, 5/8″ (15.875mm) throw
• Projection:
• Pushbar neutral – 3-13/16″ (97mm)
• Pushbar depressed – 3-1/16″ (78mm)
• Pushbar Length: 3′ 18″ (457mm), 4′ 24″ (610mm)
• Fasteners and Sex Bolts (SNB): Includes screw pack for 1-3/4″ (4mm) and 2-1/4″ (57mm) thick metal or wood doors (Optional 425 SNB available)
• Electrified Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• E: Electric locking and unlocking trim; no cylinder override
• ALK: Quiet electric latch retraction
• CON: Allegion Connect
• QEL: Quiet electric latch retraction
• Mechanical Options:
• GBK: Glass bead kit
• LBR: Less bottom rod
• SNB: Sex bolts
• SEC: Security screws
• WH: Weep holes
• Dogging Options: No mechanical dogging
• Strikes:
• 388: Top—unfinished
• 385A: Bottom—unfinished

Trim Functions:

• DT: Dummy trim. Pull when dogged (not recommended for fire device)
• EO: Exit only
• L: Lever (classroom). Key locks and unlocks; or key unlocks, then relocks when key is removed. 1-1/4″ mortise cylinder. Handed, reversible lever
• L-BE: Lever – blank escutcheon. Always operable (no cylinder). Electrified lever operation available
• L-DT: Lever, rigid – dummy trim. Pull when dogged
• L-NL: Lever, rigid – night latch
• NL: Night latch. Key retracts. Rim cylinder
• NL-OP: Night latch cylinder assembly, optional pull. Key retracts latch bolt, optional pull required. Rim cylinder
• TL: Turn lever. Key locks and unlocks; or key unlocks, then relocks when key is removed (use with DT trim). 1-1/4″ mortise cylinder
• TL-BE: Turn lever – blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)

Finishes:

• 605 – Bright brass
• 606 – Satin brass
• 612 – Satin bronze
• 619 – Satin nickel
• 625 – Bright chrome
• 626 – Satin chrome
• 628 – Aluminum, anodized
• 630 – Satin stainless steel
• 643e – Aged bronze
• 710 – Dark brown, anodized
• 711 – Matte black

Features

• Projection:
• 39-13/16″ (1011mm)
• Mechanism Case: 2-5/16″ x 2-1/8″ (59mm x 54mm)
• RX: Request to exit
• 4′: 3′ to 4′ (914mm to 1219mm) door size
• Latch Bolt: Deadlocking, 5/8″ (15.875mm) throw
• GBK: Glass bead kit
• Dogging Options: No mechanical dogging
• Device Functions: Device ships EO/DT/NL; field selectable
• SNB: Sex bolts
• Pushbar Length: 3′ 18″ (457mm), 4′ 24″ (610mm)
• CON: Allegion Connect
• QEL: Quiet electric latch retraction
• Device lengths:
• Mechanical Options:
• Pushbar neutral – 3-13/16″ (97mm)
• Electrified Options:
• LX: Latch bolt monitor switch
• Fasteners and Sex Bolts (SNB): Includes screw pack for 1-3/4″ (4mm) and 2-1/4″ (57mm) thick metal or wood doors (Optional 425 SNB available)
• E: Electric locking and unlocking trim; no cylinder override
• Strikes:
• ALK: Quiet electric latch retraction
• 388: Top—unfinished
• Pushbar depressed – 3-1/16″ (78mm)
• 3′: 2′ 6″ to 3′ (762mm to 914mm) door size
• Device centerline from finished floor:
• 385A: Bottom—unfinished
• SEC: Security screws
• LBR: Less bottom rod
• Center Case: 9″ x 1-5/8″ x 2-3/8″ (229mm x 41mm x 60mm)
• 39-11/16″ (1008mm) with mullion
• WH: Weep holes

Attributes

Alternate Codes: 7547EO-F-626-36, 7547EOF62636

Category: Commercial Electric Locks, CVR Panic Devices, Electric Locks, Glass Aluminum Hardware, Lock Sets, Narrow Style Electric Locks, Narrow Style Panic Devices, Panic Devices, Panic Devices & Exit Alarms, Standalone/Pushbutton Locks

Center Line: 3′ 3-13/16″

Certifications: A156.3, ANSI, ANSI/UL 10C, BHMA, UL 305, ULC-S104

Device Width: 36″

Door Application: Panic Devices & Exit Alarms

Door Frame Type: Aluminum Frame

Door Thickness: 1-3/4″

Door Type: Aluminum

Exit Device Category: Concealed Vertical Rod Exit CVR

Fasteners: Sex Bolts

Finish Code: 626, 630

Finish Color: Brushed Chrome, Satin Chrome, Satin Stainless Steel

Fire Rated: Yes

Fire Rating: 180 min

Function: Exit Only

Grade: Grade 1

Handing: Field Reversible

Manufacturer: Von Duprin

Series: 75

Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.

Stile Width: Narrow Stile

Strike Type: Vertical Rod Bottom Strike, Vertical Rod Top Strike
