75 Series Alarmed Kit – 36in – Von Duprin Dark Bronze Exit Alarm

Description

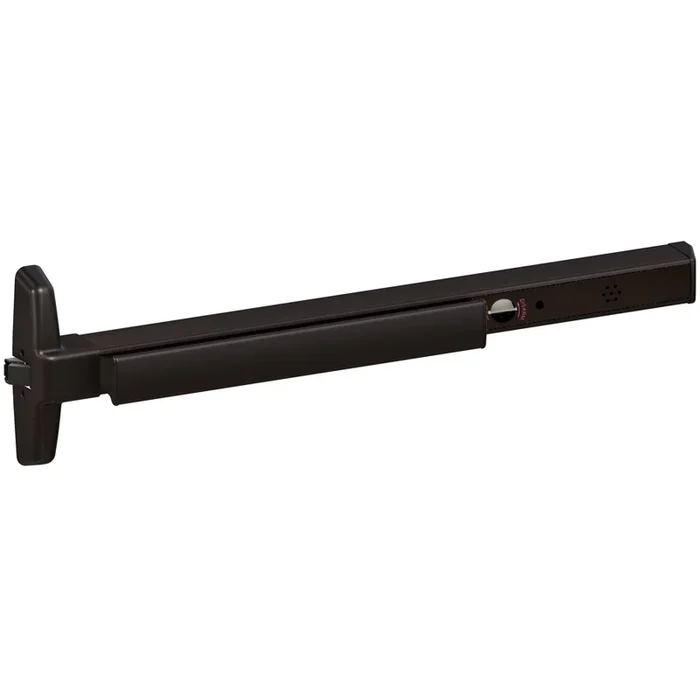

Von Duprin 75-ALK-710-36 75 Series Alarmed Kit, 36in, 710/US11P Dark Bronze

Von Duprin 75-ALK-710-36 75 Series Alarmed Kit offers an effective solution for deterring unauthorized access while maintaining egress functionality. This robust alarm kit features an internal horn that emits an 85-decibel alert when the touch bar is pressed, signaling a potential breach. The system can be easily armed or disarmed using a standard key switch, facilitating control over access. Designed for versatility, the kit includes a 24VDC input and an external inhibit option, allowing for remote arm/disarm capabilities. The unit operates on a single 9-volt alkaline battery, and it alerts users with an intermittent signal when the battery is low. For enhanced security, an auto-reset option is available, with preset times selectable at 1.5, 3, or 4.5 minutes. The 75-ALK-710-36 is compatible with the 75 Series Exit Device and comes in a dark bronze finish, ensuring a stylish yet durable addition to any entryway. Included with the kit is a clear warning decal stating, “Emergency exit only. Alarm will sound,” ensuring compliance and awareness. With its thoughtful design and user-friendly features, this alarm kit enhances safety and security for both commercial and residential applications.

75 Series Alarmed Kit, 36in, 710/US11P Dark Bronze

Notice: The info below is not item specific.

Alarm kit (ALK) is a simple yet effective way to deter unauthorized use of an opening. While the exit device is still a means of egress, the ALK kit contains an internal horn. When the touch bar is depressed, the horn sounds to provide an audible means of signaling that the opening has been violated. The alarm kit can be armed or disarmed by key thus allowing the exit device to be set in an armed or disarmed mode. The horn is rated at 85 decibels.

Features:

• For hardware applications, the assembly includes both a 24VDC input and external inhibit standard. The external inhibit provides remote arming and dis-arming.
• The key switch uses a standard 1-1/4″ (32mm) mortise cylinder with a straight cam (Schlage 20-001, L583- 477 cam). The unit operates on one standard 9-volt alkaline battery. When the battery is weak, the horn will emit an intermittent low battery alert signal.
• Auto reset (AR) option is available with this kit. This kit allows the device to resume the alarm option after a preset time. Preset times can be field selected at 1.5, 3, or 4.5 minutes.
• Alarm kits are available with a choice of two switch kits, RX or LX. RX monitors the touchpad and is furnished standard. LX optional latch bolt monitoring is recommended for use with surface vertical rod exit devices or when alarm needs to sound from both the exit device and trim side of the door. Specify ALK-LX.
• The ALK includes a 6″ x 20″ decal for application on door “emergency exit only. Alarm will sound.” RSS push bar trim can be used instead of the door decal, specify RSS push bar trim when ordering the device.
• When the ALK is used, standard dogging is removed. If cylinder dogging is required, there are two choices. Special center case dogging (SD) is available. Or, as an engineered special, the ALK can be moved to the hinge side of the device, and standard cylinder dogging (CD) can be added.

Minimum Door Opening Sizes on ALK Applications:

• 78/78-F/75/75-F:
• 3′ (914mm) Length: 2′ 11-1/2″ (902mm)
• 4′ (1219mm) Length: 3′ 5-1/2″ (1054mm)
• 7827/7827-F/7527/7527-F:
• 3′ (914mm) Length: 2′ 11-1/2″ (902mm)
• 4′ (1219mm) Length: 3′ 5-1/2″ (1054mm)
• 7847/7847-F/7547/7547-F:
• 3′ (914mm) Length: 2′ 10-1/2″ (876mm)
• 4′ (1219mm) Length: 3′ 4-1/2″ (1029mm)

Finishes:

• 605 – Bright brass
• 606 – Satin brass
• 612 – Satin bronze
• 619 – Satin nickel
• 625 – Bright chrome
• 626 – Satin chrome
• 628 – Aluminum, anodized
• 630 – Satin stainless steel
• 643e – Aged bronze
• 710 – Dark brown, anodized
• 711 – Matte black

Attributes

Access Type: Request to Exit

Alternate Codes: 75-ALK-710-36, 75ALK71036

Category: Exit Alarms, Panic Devices & Exit Alarms

Compatibility: 75 Series Exit Device

Device Width: 36″

Door And Lock Sensor: Pushbar Monitor

Door Application: Exit Alarms

Finish Code: 710

Finish Color: Dark Bronze Anodized, Dark Bronze/Clear Coat, Duranotic Dark Bronze

Manufacturer: Von Duprin
