Description

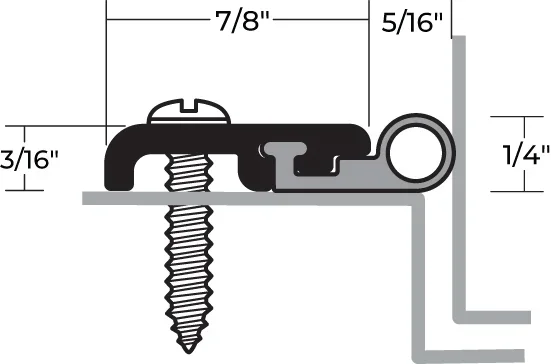

NGP 137SDKB 72″ DKB Aluminum Silicone Dense Bulb Perimeter Seal
NGP 137SDKB 72″ DKB-finish Aluminum Silicone Dense Bulb Perimeter Seal offers exceptional performance and durability for commercial restroom applications. Constructed from aluminum alloy 6063 with a T5 temper, this perimeter seal is designed to withstand the rigors of daily use while maintaining its integrity. The dense silicone, colored gray, provides excellent flexibility and memory, ensuring a tight seal even in extreme conditions. This product remains functional within a temperature range of -100°F to 500°F, making it suitable for various environments. Its flame resistance and moisture-resistant properties further enhance its reliability, especially in areas utilizing FM200 or Halon Fire Suppression Systems. NGP’s commitment to quality is evident in its BHMA certification to ANSI/BHMA A156.22 performance tests for heat and cold, assuring compliance with industry standards. The included #6 x 3/4″ stainless steel sheet metal screws are slotted for easy adjustment, allowing for a precise fit during installation. With excellent resistance to ozone, UV, and aging, the NGP 137SDKB seal is a smart choice for professionals seeking a dependable and long-lasting solution for restroom partitions. Upgrade your facilities with this robust perimeter seal that combines functionality and durability for superior performance.
72″ DKB-finish Aluminum Silicone Dense Bulb Perimeter Seal
- Excellent flexibility and memory
- #6 x 3/4″ stainless steel sheet metal screws furnished
- Flame resistant
- Synthetic rubber polymer: Siloxane
- Dark bronze finish
- Dense silicone is gray
- Temperature range -100°F to 500°F, remains flexible at extreme temperatures
- Excellent resistance to ozone, UV and aging
- Screw holes slotted for adjustment
- BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
- Moisture resistant
- Recommended for areas using FM200 or Halon Fire Suppression Systems
- Aluminum alloy 6063, T5 temper
Attributes
Application: Excellent flexibility and memory
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Dense silicone is gray
Fasteners: #6 x 3/4″ stainless steel sheet metal screws furnished
Finish: Dark bronze finish
Fire Rated: Recommended for areas using FM200 or Halon Fire Suppression Systems
Length: 72.0″
Material: Synthetic rubber polymer: Siloxane
Moisture Resistant: YES
Resistance: Excellent resistance to ozone, UV and aging
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: ACOUSTICAL TESTED to ASTM E90 Standard Test Method for Laboratory Measurement of Airborne Sound Transmission Loss of Building Partitions and Elements, and ASTM E2235 Standard Test Method for Determination of Decay Rates for use in Sound Insulation Test Methods. Refer to information on pages G8 thru G10 of our Gasketing catalog for test result data.
Standard-4: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-5: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature range -100°F to 500°F, remains flexible at extreme temperatures
