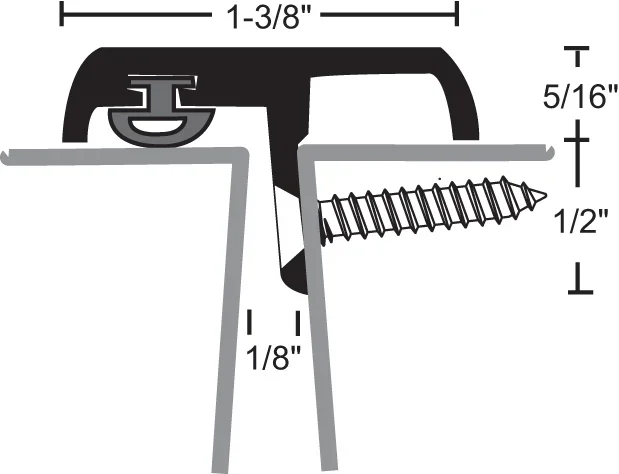

72″ DKB-finish Aluminum Overlapping Astragal with NGP-TPV Seal

Description

NGP 158NDKB 72″ DKB Aluminum Overlapping Astragal with NGP-TPV Seal

NGP 158NDKB 72″ DKB-finish Aluminum Overlapping Astragal with NGP-TPV Seal offers a robust solution for enhancing the functionality and longevity of beveled edge doors. Crafted from high-quality aluminum alloy 6063 in T5 temper, this astragal features a stylish dark bronze finish that complements various architectural styles while ensuring durability. One of the standout features is the Thermo-Plastic Vulcanizate (TPV) seal, known for its excellent abrasion resistance, tensile strength, and memory. This material is flame resistant and moisture resistant, providing added safety and reliability in commercial restroom environments. With a temperature range of -81°F to 275°F, the NGP 158NDKB is built to withstand extreme conditions, making it suitable for diverse applications. This astragal is BHMA certified to ANSI/BHMA A156.22 performance tests, ensuring it meets the highest industry standards for heat and cold resistance. It accommodates doors up to 120″ in height and comes with #8 X 1″ FH U/C SMS fasteners for easy installation. Whether you’re upgrading existing restroom partitions or installing new ones, the NGP 158NDKB combines functionality with an appealing aesthetic, making it a smart choice for building professionals and discerning homeowners alike.

72″ DKB-finish Aluminum Overlapping Astragal with NGP-TPV Seal

• Temperature range -81°F to 275°F
• Flame resistant
• BHMA Certified to ANSI/BHMA A156.22 performance tests for heat and cold
• Dark bronze finish
• Maximum height 120″
• Fits beveled edge doors
• #8 X 1″ FH U/C SMS furnished
• Thermo-Plastic Vulcanizate (TPV)
• Moisture resistant
• Good resistance to ozone, sunlight and aging
• NGP-TPV is black
• Aluminum alloy 6063, T5 temper
• Very good abrasion resistance, tensile strength and memory

Attributes

Application: Fits beveled edge doors

BHMA: BHMA Certified to ANSI/BHMA A156.22 performance tests for heat and cold

Color: NGP-TPV is black

Fasteners: #8 X 1″ FH U/C SMS furnished

Finish: Dark bronze finish

Fire Rated: Flame resistant

Height: Maximum height 120″

Length: 72.0″

Material: Thermo-Plastic Vulcanizate (TPV)

Moisture Resistant: YES

Resistance: Good resistance to ozone, sunlight and aging

Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.

Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.

Standard-3: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.

Temperature Range: Temperature range -81°F to 275°F
