72″ DKB-finish Aluminum Neoprene Sponge Seal by NGP

Description

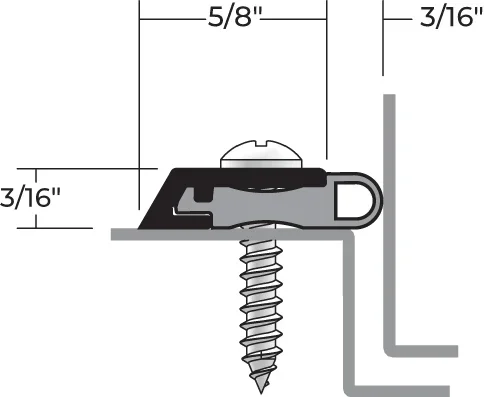

NGP 110NDKB 72″ DKB Aluminum Neoprene Sponge Seal

NGP 110NDKB 72″ DKB-finish Aluminum Neoprene Sponge Seal is an essential addition to any commercial restroom partition, ensuring durability and performance. Crafted from Aluminum Alloy 6063 with T5 temper, this seal boasts excellent abrasion resistance and tensile strength, making it ideal for high-traffic environments. With a temperature range of -81°F to 275°F, the NGP 110NDKB is designed to withstand extreme conditions while maintaining its integrity. The proprietary microcellular EPDM rubber provides advanced elastomeric foam characteristics, enhancing its flame-resistant and moisture-resistant properties. This seal is also resistant to ozone, sunlight, and aging, ensuring long-lasting functionality. The seal is BHMA certified to ANSI/BHMA A156.22 performance tests for heat and cold, guaranteeing its reliability in various conditions. Installation is straightforward, thanks to the included #6 x 3/4″ stainless steel sheet metal screws and slotted screw holes for adjustment. Its sleek dark bronze finish adds a touch of sophistication while effectively sealing gaps. For building professionals and knowledgeable homeowners alike, the NGP 110NDKB offers a robust solution that meets stringent safety standards, including compliance with fire door regulations. Make a reliable choice for your restroom partitions with this high-quality seal.

72″ DKB-finish Aluminum Neoprene Sponge Seal

• Very Good Abrasion Resistance, Tensile Strength and Memory
• Flame-Resistant
• Aluminum Alloy 6063, T5 Temper
• Moisture-Resistant
• Good Resistance to Ozone, Sunlight and Aging
• Synthetic EPDM Rubber in Polypropylene Thermoplastic Matrix Closed Cell Advanced Elastomeric Foam
• Temperature Range -81°F to 275°F
• Dark Bronze Finish
• Patent Pending Microcellular EPDM
• Color is Black
• BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
• #6 x 3/4″ Stainless Steel Sheet Metal Screws Furnished
• Screw Holes Slotted for Adjustment

Attributes

BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold

Color: Color is Black

Fasteners: #6 x 3/4″ Stainless Steel Sheet Metal Screws Furnished

Finish: Dark Bronze Finish

Fire Rated: Flame-Resistant

Length: 72.0″

Material: Aluminum Alloy 6063, T5 Temper

Moisture Resistant: YES

Patented: Patent Pending Microcellular EPDM

Resistance: Good Resistance to Ozone, Sunlight and Aging

Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.

Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.

Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.

Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.

Temperature Range: Temperature Range -81°F to 275°F
