Description

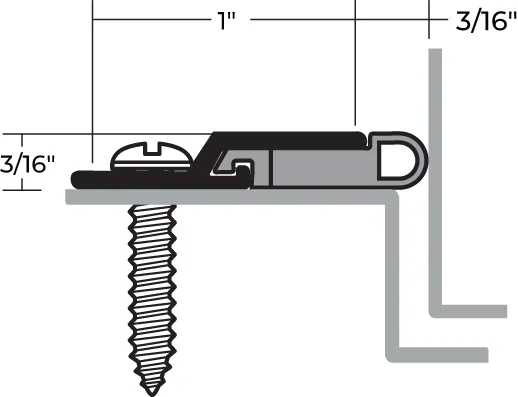

NGP 127NA 72″ Anodized Aluminum Neoprene Sponge Seal
NGP 127NA 72″ Anodized Aluminum Neoprene Sponge Seal offers exceptional durability and performance for commercial restroom partitions. Crafted from Aluminum Alloy 6063 with a T5 temper, this seal is designed to withstand the rigors of daily use while maintaining a sleek appearance. The synthetic EPDM rubber, enveloped in a polypropylene thermoplastic matrix, provides advanced elastomeric properties, ensuring superior abrasion resistance, tensile strength, and memory. This seal excels in various environmental conditions, boasting moisture resistance and a temperature range of -81°F to 275°F. Its flame-resistant characteristics make it a reliable choice for safety-conscious installations. Moreover, the NGP 127NA is BHMA Certified to ANSI/BHMA A156.22 performance tests for heat and cold, assuring compliance with industry standards. Installation is straightforward, with slotted screw holes allowing for easy adjustments. The seal is furnished with #6 x 3/4″ stainless steel sheet metal screws, enhancing its durability. Available in a stylish black color, the anodized aluminum finish not only looks professional but also protects against aging, ozone, and sunlight exposure. Choose the NGP 127NA for a high-performance sealing solution that meets the demands of any commercial restroom application.
72″ Anodized Aluminum Neoprene Sponge Seal
- Very Good Abrasion Resistance, Tensile Strength and Memory
- Flame-Resistant
- Aluminum Alloy 6063, T5 Temper
- Moisture-Resistant
- Good Resistance to Ozone, Sunlight and Aging
- Synthetic EPDM Rubber in Polypropylene Thermoplastic Matrix Closed Cell Advanced Elastomeric Foam
- Temperature Range -81°F to 275°F
- Patent Pending Microcellular EPDM
- Color is Black
- BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
- Anodized Aluminum
- #6 x 3/4″ Stainless Steel Sheet Metal Screws Furnished
- Screw Holes Slotted for Adjustment
Attributes
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Color is Black
Fasteners: #6 x 3/4″ Stainless Steel Sheet Metal Screws Furnished
Finish: Anodized Aluminum
Fire Rated: Flame-Resistant
Length: 72.0″
Material: Aluminum Alloy 6063, T5 Temper
Moisture Resistant: YES
Patented: Patent Pending Microcellular EPDM
Resistance: Good Resistance to Ozone, Sunlight and Aging
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: ACOUSTICAL TESTED to ASTM E90 Standard Test Method for Laboratory Measurement of Airborne Sound Transmission Loss of Building Partitions and Elements, and ASTM E2235 Standard Test Method for Determination of Decay Rates for use in Sound Insulation Test Methods. Refer to information on pages G8 thru G10 of our Gasketing catalog for test result data.
Standard-4: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-5: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature Range -81°F to 275°F
