72″ Anodized Aluminum Extended Door Shoe with Nylon Brush Insert – NGP

Description

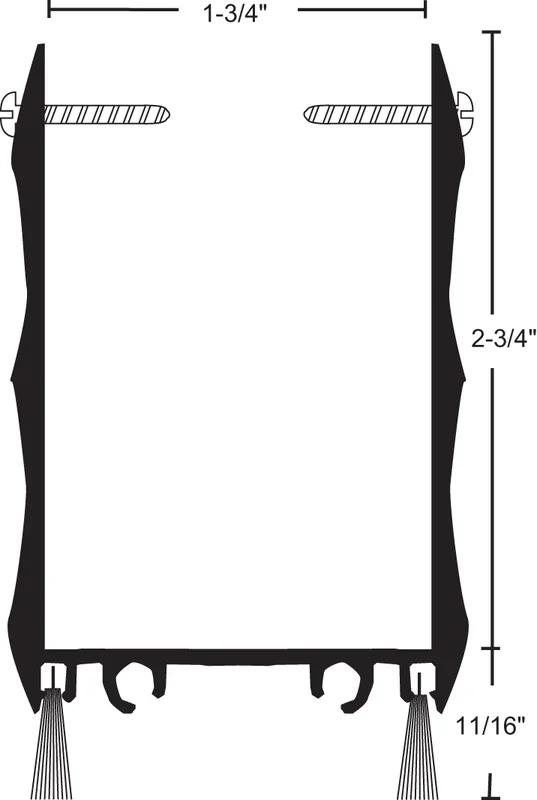

NGP 99WHA 72″ Anodized Aluminum Extended Door Shoe with Nylon Brush Insert

NGP 99WHA 72″ Anodized Aluminum Extended Door Shoe with Nylon Brush Insert is designed to provide a durable and effective solution for your commercial restroom needs. Constructed from high-quality aluminum alloy 6063 with a T5 temper, this door shoe combines strength with an elegant anodized finish. The gray nylon brush insert offers excellent abrasion resistance, flexibility, and memory, ensuring it maintains its shape and performance over time. This extended door shoe is moisture resistant, making it ideal for environments prone to humidity. It performs well in temperature ranges from -70°F to 425°F, showcasing its versatility in various conditions. Although it is not designed to prevent water penetration, it effectively retains insecticides, enhancing hygiene in restroom areas. NGP 99WHA is BHMA Certified to ANSI/BHMA A156.22 performance tests, meeting high standards for heat and cold. Each unit includes #6 x 3/4″ stainless steel SMS fasteners for easy installation. End caps are available separately, allowing for a customized fit.Whether you’re outfitting a new facility or upgrading existing hardware, the NGP 99WHA door shoe combines functionality with aesthetic appeal, making it a smart choice for any commercial restroom application.

72″ Anodized Aluminum Extended Door Shoe with Nylon Brush Insert

• Anodized aluminum
• Nylon brush is gray
• Retains insecticides well
• Temperature range -70°F to 425°F
• Not effective against water penetration
• Moisture resistant
• BHMA Certified to ANSI/BHMA A156.22 performance tests for heat and cold
• #6 x 3/4″ stainless steel SMS furnished
• Aluminum alloy 6063, T5 temper
• Synthetic polymer: Polyamide
• Excellent abrasion resistance, flexibility and memory
• End caps available – sold separately

Attributes

BHMA: BHMA Certified to ANSI/BHMA A156.22 performance tests for heat and cold

Color: Nylon brush is gray

Fasteners: #6 x 3/4″ stainless steel SMS furnished

Finish: Anodized aluminum

Length: 72.0″

Material: Synthetic polymer: Polyamide

Moisture Resistant: YES

Resistance: Excellent abrasion resistance, flexibility and memory

Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.

Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.

Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.

Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.

Temperature Range: Temperature range -70°F to 425°F
