Description
NGP 8135N 72″ Aluminum NGP-TPV Bumper Seal Threshold, 1/2″ x 3.75″
NGP 8135N 72″ Aluminum NGP-TPV Bumper Seal Threshold is engineered to provide exceptional durability and performance for commercial restroom applications. Constructed from aluminum alloy 6063 in T5 temper, this threshold measures 3-3/4″ wide and 1/2″ tall, ensuring a reliable barrier against moisture and debris. Its smooth top design not only enhances aesthetics but also facilitates easy cleaning. Weighing just .60 lbs./ft., the NGP-TPV features a typical wall thickness of .115″, offering robust strength without compromising on weight. The threshold comes with #10 x 1-1/2″ FH zinc-plated wood screws for straightforward installation, and a dark bronze finish is supplied with DKB thresholds. This product is certified by UL to comply with various fire safety standards, making it suitable for use with hollow metal fire doors rated up to 3 hours and wood fire doors rated up to 90 minutes. Additionally, the threshold has been air infiltration tested to ASTM E283, ensuring reliable performance in controlling air leakage. For added convenience, NGP 8135N can ship via UPS, making it a practical choice for building professionals and knowledgeable homeowners alike. With its mill finish and black NGP-TPV coating, this threshold combines functionality with a sleek design.

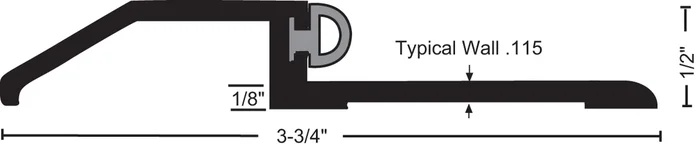

72″ AluminumNGP-TPV Bumper Seal Threshold, 1/2″ x 3-3/4″
- #10 x 1-1/2″ FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
- Mill finish
- 3-3/4″ wide x 1/2″ tall
- Smooth top
- Typical wall thickness .115″
- Weight: .60 lbs./ft.
- NGP-TPV is black
- Aluminum alloy 6063, T5 temper
Attributes
Color: NGP-TPV is black
Dimensions: 3-3/4″ wide x 1/2″ tall
Fasteners: #10 x 1-1/2″ FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
Finish: Mill finish
Length: 72.0″
Material: Aluminum alloy 6063, T5 temper
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Wall Thickness: Typical wall thickness .115″
Weight: Weight: .60 lbs./ft.
