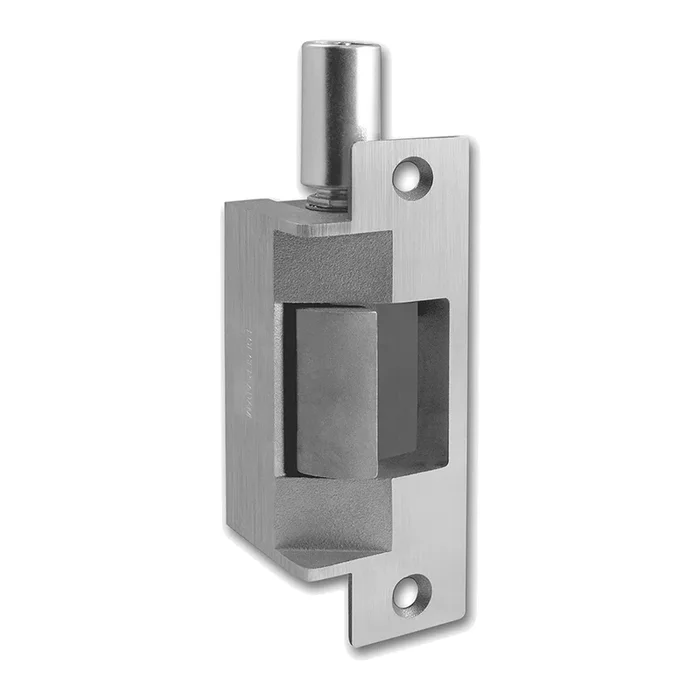

710 Series Electric Strike by HES – Reliable Door Hardware Solution

Description

HES 7127524D630LBMLCM 75 24VDC Electric Strike with LBMLCM Latchbolt Monitor Satin Stainless Steel Finish

Assa Abloy Electronic Security Hardware – Hes 7127524D630LBMLCM 75 24VDC Electric Strike with LBMLCM Latchbolt Monitor Satin Stainless Steel Finish

• For Use With 1/2″, 5/8″** Or 3/4″** Throw Latchbolts In Hollow Metal Frame Applications
• Ul 10C Fire-Rated, 3 Hour Single Door (Fail Secure Only)
• ANSI/BHMA A156.31, Grade 1
• Tamper Resistant, Heavy-Duty Construction
• Non Handed

Attributes

Adjustability: Horizontal

Amp Draw: .15 Amps

Application: 3/4″ Latchbolt

Baa Qualified: Yes

Base Material: Stainless Steel

Commercial Residential: Commercial

Complete Pack Options: Complete Pack for 3/4″ throw latchbolt without deadbolt

Configuration: Centered

Country of origin: USA

Dynamic Strength (ft-lbs): 70

Endurance (cycles): 1,000,000

Faceplate Size: 4-7/8″ x 1-1/4″

Fail Safe | Fail Secure: Fail Secure

Finish: 630 Satin stainless steel

Finish Family: Matte Silver

Fire Rated: Yes

Fire Rating: 3 Hours {A}

For Use With: Cylindrical Locks, Mortise Exit and Latch Locks

Frame Application: Metal

Frame Material: Metal|Wood

Function: Fail Secure

Grade: Grade 1

Holding Force: 1500 lbs.

Installation: Commercial

Keeper Size: 3/4″

Keeper Style: 3/4″ PK keeper

Latchbolt Accommodation: 1/2″ – 3/4″

Limited Warranty: 5 Years

Lock Type: Cylindrical Lock|Mortise Lock

Monitoring Installation: Factory Configured

Monitoring Options: Latchbolt Strike Monitor

Operating Voltage: 24 VDC

Origin: USA

Pack Height: 2.5″

Pack Length: 7.5″

Pack Qty: 1

Pack Volume: 112.5 in³

Pack Width: 6″

Series: 7000 Series

Shim Type: NA

Ship Weight: 2 lbs.

Solenoid Orientation: Vertical for hollow metal frames

Strike: 75 24VDC Electric Strike with LBMLCM Latchbolt Monitor

Strike Body Depth (in): NA

Strike Body Height (in): NA

Subtype: Electric Strikes

Surface Mounting: NA

Switch Type: Latch, Keeper Deadlocked Status

Tamper Resistant: NA

Type: Electronics

Unit of Measure: Each

Upc: 740090054513

Voltage: 12|24

Warranty: SecuriCare five-year, no fault, no questions asked warranty
