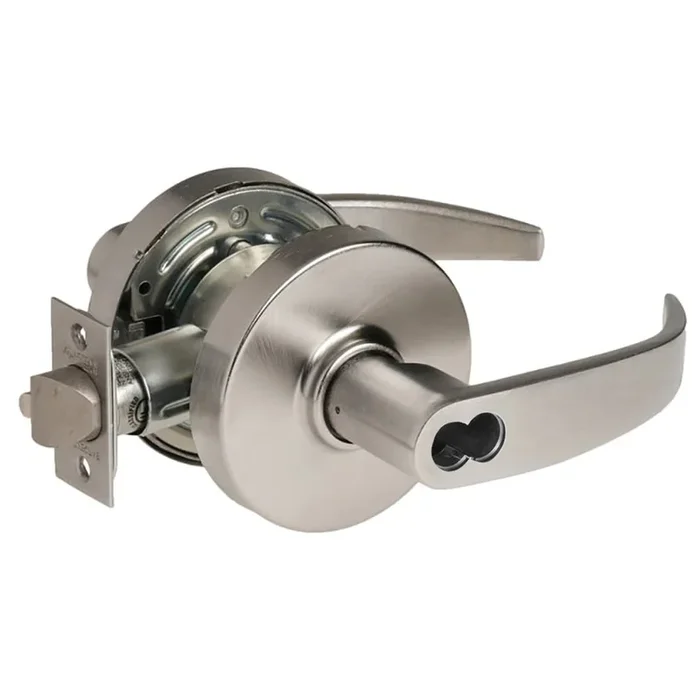

7-Line Classroom P Lever, Grade 2, LFIC – Sargent Satin Chrome Commercial Lock

Description

Sargent 2860-7G37 LP 26D Cylindrical Lock

A key-in-lever lock designed for standard duty commercial interior and exterior applications in public buildings, medical offices, hotels/motels and government facilities. Exceeds ANSI/BHMA A156.2 standards for cycling and durability

Attributes

Alternate Codes: 28-60-7G37LP26D, 28607G37LP26D

Ansi: F84

Ansi Function: F84 – Classroom

Baa Qualified: Yes

Base Material: Brass, Bronze

Bolt Projection: 1/2″

Bolt Protection: 1/2″

Bore Hole Diameter: 2-1/8″

Box Depth Fraction: 8-1/4″

Box Height Fraction: 4-1/4″

Box Width Fraction: 6-7/8″

Burglar Rated: No

Category: Commercial Locks, Cylindrical Levers, Lock Sets

Commercial Residential: Commercial

Country of Origin: Usa

Country of origin: United States

Cylinder Type: Sargent LFIC Less Core

Cylinders Present: Single Cylinder

Door Application: Cylindrical Levers

Door Thickness: 1-3/8″ – 1-3/4″

Dust Box: None

Finish: 626/US26D

Finish Code: 26D

Finish : Satin Chrome

Finish Family: Matte Silver

Fire Rated: No

Fire Rating: 3 Hours {A}

Function: 37-Classroom

Function Family: Classroom

Grade: Grade 2

Hand: Not Handed

Handing: Non-handed

Installation: Commercial

Latch Backset Dim: 2-3/4″

Latch Bore Diameter: 7/8″

Latch Number: 07-2430

Latch Type: Dead Latch (Guarded)

Lever Knob: Lever

Lever Knob Design: P – Lever

Lever Knob Design Name: P

Leverknob Design: P Lever

Leverknob Design Family: Curved Return Lever

Limited Warranty: 5 Year Warranty

Lock Face Size: 2-1/4″ x 1-1/8″

Manufacturer Function: Classroom

Maximum Door Thickness: 1-3/4″

Minimum Door Thickness: 1-3/4″

Origin: United States

Pack Height: 4.25″

Pack Height 2: 9″

Pack Length: 8.25″

Pack Length 2: 20.75″

Pack Qty: 1

Pack Volume: 241.05 in³

Pack Volume 2: 2801.25 in³

Pack Width: 6.88″

Pack Width 2: 15″

Pins: 6

Product Height: 4.25″

Product Length: 8.25″

Product Width: 6.88″

Projection: 2-1/2″

Rose Escutcheon: Rose

Rose Escutcheon Design: L – Rose

Roseescutcheon Design: 3-3/8″ Rose Diameter

Roseescutcheon Dimensions: 3-3/8″

Screws: Combination

Series: 7-Line Bored Lever Locks

Ship Weight: 3.6 lbs.

Std Latch Backset Dim: 2-3/4″

Std Latch Number: 193762

Std Latch Type: Deadlatch

Std Strike Height: 4-7/8″

Std Strike Number: 808

Std Strike Type: ANSI Curved Lip Strike

Std Strike Width: 1-1/4″

Strike Dimensions: 1-1/4″ x 4-7/8″

Strike Height: 4-7/8″

Strike Number: 808

Strike Type: ASA

Strike Width: 1-1/4″

Subtype: Cylindrical Lock

Type: Locks, Cylinders, Cores, Keyblanks

Ul Listing: ANSI A156.2, Series 4000, Grade 2, UL Listed

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 10
