7-Line Classroom L Lever, Grade 2, LFIC – Sargent Satin Chrome Lock Set

Description

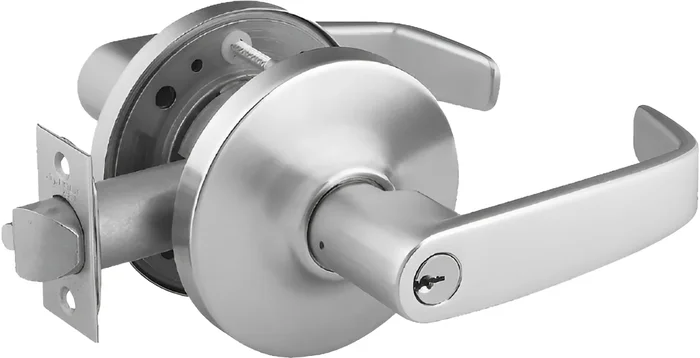

Sargent 28607G37LL26D Cylindrical Lock

Sargent 28607G37LL26D Classroom Cylindrical Lock Grade 2 with L Lever with Large Format IC Prep and L Rose and ASA Strike Less Core Satin Chrome Finish

Attributes

Alternate Codes: 28-60-7G37LL26D, 28607G37LL26D

Ansi: F84

Ansi Function: F84 – Classroom

Ansi Function : Classroom

Baa Qualified: Yes

Backset: 2-3/4″ Backset

Base Material: Brass, Bronze

Bolt Projection: 1/2″

Bolt Protection: 1/2″

Bore Hole Diameter: 2-1/8″

Box Depth Fraction: 8-1/4″

Box Height Fraction: 4-1/4″

Box Width Fraction: 6-7/8″

Burglar Rated: No

Category: Commercial Locks, Cylindrical Levers, Lock Sets

Commercial Residential: Commercial

Country of Origin: Usa

Country of origin: United States

Cylinder Type: Sargent LFIC Less Core

Cylinders Present: Single Cylinder

Design: L Lever and L Rose

Door Application: Cylindrical Levers

Door Thickness: 1-3/8″ – 1-3/4″

Dust Box: None

Finish: Satin Chrome

Finish Code: 26D

Finish : Satin Chrome

Finish Family: Matte Silver

Fire Rated: No

Fire Rating: 3 Hours {A}

Function: 37-Classroom

Function Family: Classroom

Grade: Grade 2

Hand: Not Handed

Handing: Non-handed

Installation: Commercial

Latch Backset Dim: 2-3/4″

Latch Bore Diameter: 7/8″

Latch Number: 07-2430

Latch Type: Dead Latch (Guarded)

Lever Knob: Lever

Lever Knob Design: L – Lever

Lever Knob Design Family: Straight Return Lever

Lever Knob Design Name: L

Leverknob Design: L Lever

Leverknob Design Family: Straight Return Lever

Limited Warranty: 5 Year Warranty

Lock Face Size: 2-1/4″ x 1-1/8″

Manufacturer Function: Classroom

Manufacturer Function : Operated by deadlocking latch, latch by either lever unless outside lever is locked by key, key in outside lever locks or unlocks outside lever or tracts latch, inside lever always operative.

Maximum Door Thickness: 1-3/4″

Minimum Door Thickness: 1-3/4″

Num Pins: 6

Origin: United States

Pack Height: 4.25″

Pack Height 2: 9″

Pack Length: 8.25″

Pack Length 2: 20.75″

Pack Qty: 1

Pack Volume: 241.05 in³

Pack Volume 2: 2801.25 in³

Pack Width: 6.88″

Pack Width 2: 15″

Pins: 6

Product Height: 4.25″

Product Length: 8.25″

Product Width: 6.88″

Projection: 2-1/2″

Rose Escutcheon: Rose

Rose Escutcheon Design: L – Rose

Rose Escutcheon Dimensions: 3-3/8″

Roseescutcheon Design: 3-3/8″ Rose Diameter

Roseescutcheon Dimensions: 3-3/8″

Screws: Combination

Series: 7 Series

Ship Weight: 3.6 lbs.

Std Latch Backset Dim: 2-3/4″

Std Latch Number: 193762

Std Latch Type: Deadlatch

Std Strike Height: 4-7/8″

Std Strike Number: 808

Std Strike Type: ANSI Curved Lip Strike

Std Strike Width: 1-1/4″

Strike: ASA Strike

Strike Dimensions: 1-1/4″ x 4-7/8″

Strike Height: 4-7/8″

Strike Number: 808

Strike Type: ASA

Strike Width: 1-1/4″

Structure Cylinder: 60

Structure Function: G37

Structure Latch Number: 193762

Structure Outside Finish: US26D

Structure Outside Trim: L

Structure Series: 7Line

Structure Strike Number: 808

Subtype: Cylindrical

Type: Mechanical Commercial Locksets

Ul Listing: ANSI A156.2, Series 4000, Grade 2, UL Listed

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 10
