60″ Threshold Bumper Seal Stop Strip – NGP Weatherstripping

Description

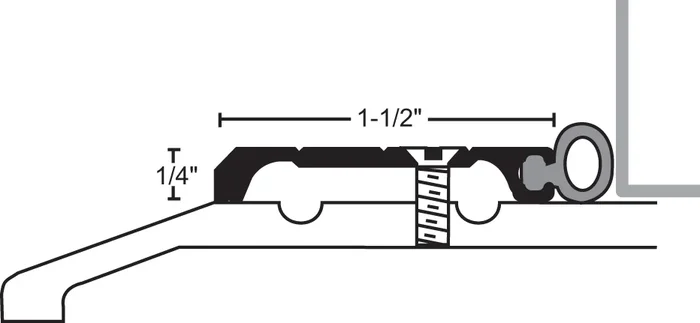

NGP 700EN STOP STRIP 60″ Threshold Bumper Seal Stop Strip

NGP 700EN STOP STRIP 60″ Threshold Bumper Seal Stop Strip is engineered for superior door sealing and weather resistance. Crafted from high-quality aluminum alloy 6063 with a T5 temper, this robust stop strip stands 1/4″ tall and is designed to work seamlessly with NGP’s saddle thresholds, effectively blocking drafts and moisture.Measuring a generous 60 inches in length and weighing only .20 lbs./ft., it offers a lightweight yet durable solution for commercial restroom applications. The included #10 self-tapping machine screws ensure a secure and straightforward installation process. The neoprene component, finished in sleek black, provides an aesthetically pleasing contrast to the mill finish of the aluminum. This stop strip is not just practical; it meets rigorous industry standards, certified by UL for both positive pressure and smoke & draft control, compliant with NFPA and IBC regulations. Its air infiltration testing to ASTM E283 further underscores its reliability in minimizing air leakage.Choose the NGP 700EN for a dependable and efficient sealing solution that enhances the performance of your restroom partitions while maintaining a polished appearance.

60″ Threshold Bumper Seal Stop Strip

• Mill finish
• 1/4″ tall
• #10 self-tapping machine screws included
• Neoprene is black
• Weight: .20 lbs./ft.
• Works in conjunction with our saddle threshold to provide a seal against the door, providing weather resistance
• Aluminum alloy 6063, T5 temper

Attributes

Color: Neoprene is black

Fasteners: #10 self-tapping machine screws included

Finish: Mill finish

Height: 1/4″ tall

Length: 60.0″

Material: Aluminum alloy 6063, T5 temper

Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.

Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.

Weight: Weight: .20 lbs./ft.
