60″ Self-Adhesive Silicone Fire and Smoke Seal – NGP

Description

NGP 5050C 60″ Self-Adhesive Silicone Fire Smoke Seal

NGP 5050C 60″ Self-Adhesive Silicone Fire and Smoke Seal is designed to deliver superior performance in both fire safety and moisture resistance. Constructed from synthetic rubber polymer Siloxane, this sealing solution provides excellent flexibility and memory, ensuring a tight fit that adapts to various applications. With a temperature range of -100°F to 500°F, it remains flexible even in extreme conditions. This fire and smoke seal is flame resistant and tested to BHMA standards for air infiltration and heat resistance. It effectively controls smoke and drafts, meeting stringent requirements for hollow metal and wood fire doors, rated up to 3 hours and 90 minutes, respectively. The modified acrylic pressure-sensitive adhesive offers high initial adhesion and long-term holding power, making it suitable for both interior and exterior applications. Available in a charcoal color and measuring 1/2″ wide by 1/4″ tall, the seal is offered in various lengths, including 17′, 20′, 21′, 25′, and 300′ rolls. Its durability against aging, UV radiation, and chemicals ensures that it will maintain integrity over time, while the shelf life of one year prior to installation allows for convenient storage. NGP 5050C is an ideal choice for building professionals seeking reliable fire and smoke protection.

60″ Self-Adhesive Silicone Fire and Smoke Seal

• Excellent flexibility and memory
• Meets requirements of RoHS directive
• Flame resistant
• Synthetic rubber polymer: Siloxane
• Modified acrylic pressure sensitive adhesive protected by release liner
• Resistant to aging, weathering, UV radiation, water, detergent, alcohol and the influence of chemicals
• Available in 17′, 20′, 21′, 25′ and 300′ rolls
• Temperature range -100°F to 500°F, remains flexible at extreme temperatures
• Shelf life of adhesive prior to installation is one year when stored at 75°F and 50% relative humidity or less
• Excellent resistance to ozone, UV and aging
• Edge Sealing System – category “G” for 20 minute rated category B wood doors perimeter application up to: single swing 4’0 x 8’0, pairs 8’0 x 8’0. Use 9550 at the meeting edge of pairs

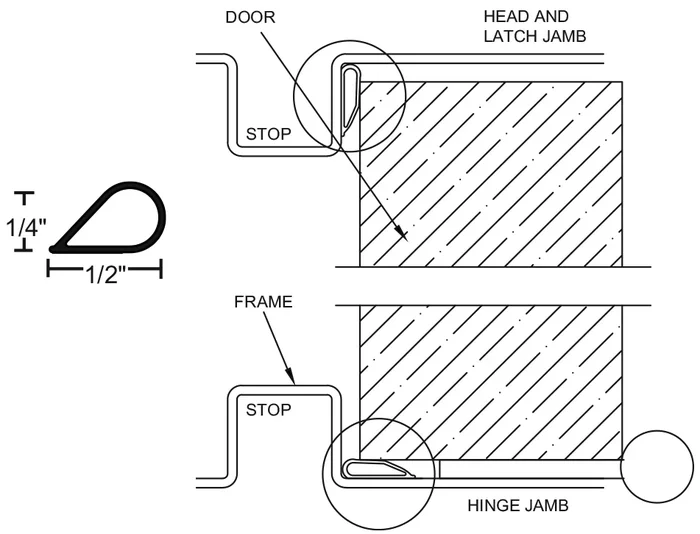

• 1/2″ wide x 1/4″ tall
• BHMA Certified to ANSI/BHMA A156.22 performance tests for heat, cold and air infiltration
• Self-Adhesive
• Moisture resistant
• Recommended for areas using FM200 or Halon Fire Suppression Systems
• Provides high initial adhesion and long term holding power for permanent mounting in exterior or interior locations
• End use temperature range of adhesive, long term exposure -30°F up to 250°F
• Smoke and draft control – category “H”, up to 3 hours hollow metal fire doors, up to 90 minutes wood fire doors
• Charcoal
• BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat, Cold, Adhesive and Energy Performance

Attributes

Application: Excellent flexibility and memory

BHMA: BHMA Certified to ANSI/BHMA A156.22 performance tests for heat, cold and air infiltration

Color: Charcoal

Dimensions: 1/2″ wide x 1/4″ tall

Fire Rated: Smoke and draft control – category “H”, up to 3 hours hollow metal fire doors, up to 90 minutes wood fire doors

Length: 60.0″

Material: Synthetic rubber polymer: Siloxane

Moisture Resistant: YES

Resistance: Resistant to aging, weathering, UV radiation, water, detergent, alcohol and the influence of chemicals

Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.

Standard-3: ACOUSTICAL TESTED to ASTM E90 Standard Test Method for Laboratory Measurement of Airborne Sound Transmission Loss of Building Partitions and Elements, and ASTM E2235 Standard Test Method for Determination of Decay Rates for use in Sound Insulation Test Methods. Refer to information on pages G8 thru G10 of our Gasketing catalog for test result data.

Standard-4: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.

Standard-5: NGP-EDGE® SEALING SYSTEM. Certified by UL to ANSI/UL10C Category ‘G’; required for Category B wood fire doors to meet positive pressure requirements complying with IBC, and NFPA 252. See individual products for maximum door size and ratings.

Standard-6: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.

Temperature Range: End use temperature range of adhesive, long term exposure -30°F up to 250°F
