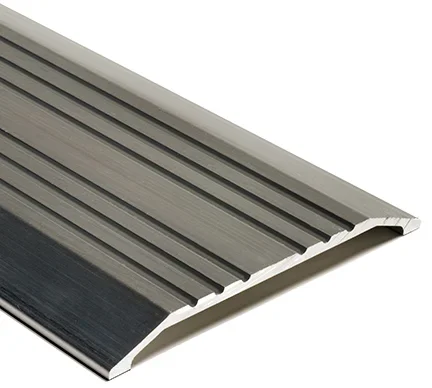

60″ Mill Aluminum Saddle Threshold – NGP Weatherstripping Product

Description

NGP 425 60 National Guard Products Threshold

SADDLE THRESHOLD MILL 28 60 INCH ALUMINUM

• #10 x 1-1/2″ FH zinc plated wood screws included
• Mill finish
• 5″ wide x 1/2″ tall
• Fluted top
• Weight: .88 lbs./ft.
• Aluminum alloy 6063, T5 temper
• Typical wall thickness .162″

Attributes

Restriction message: Due to the fragile nature of this item, it can be easily damaged in shipping. The following charges apply to insure your items arrive in good condition. 1 to 12 Pieces: $19.50 13 to 24 Pieces: $39.50 25 to 36 Pieces: $58.50

Accessible: Yes

Ada Compliance: Yes

Commercial Residential: Commercial

Dimensions: 5″ wide x 1/2″ tall

Fasteners: #10 x 1-1/2″ FH zinc plated wood screws included

Finish: Mill finish

Finish : Milled Aluminum

Finish Family: Matte Silver

Fire Rated: 3 Hours

Fire Rating: 3 Hours

Installation: Commercial

Length: 60.0″

Material: Aluminum alloy 6063, T5 temper

Pack Qty: 1

Restrictions: Fragile

Series: NGP Thresholds

Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.

Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-2: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Subtype: Threshold

Type: Hinges and Pivots

Ul Listing: UL10C

Unit of Measure: Each

Wall Thickness: Typical wall thickness .162″

Weight: Weight: .88 lbs./ft.
