60″ DKB-finish Aluminum Overlapping Astragal with Silicone Seal – NGP

Description

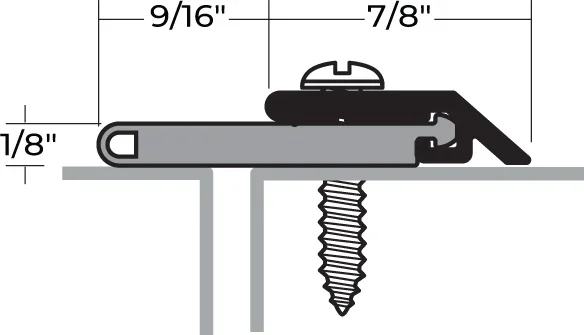

NGP 114SDKB 60″ DKB Aluminum Overlapping Astragal with Silicone Seal

NGP 114SDKB 60″ DKB-finish Aluminum Overlapping Astragal With Silicone Seal offers a robust solution for commercial restroom partition hardware. Crafted from aluminum alloy 6063 with T5 temper, this overlapping astragal is designed to withstand demanding environments while maintaining excellent flexibility and memory. The synthetic rubber polymer, made from Siloxane closed cell sponge, ensures moisture resistance and superior durability against ozone, UV light, and aging. This product excels in extreme conditions, with a temperature range of -100°F to 500°F, making it suitable for various applications, including those utilizing FM200 or Halon Fire Suppression Systems. The dark bronze finish not only adds aesthetic value but also complements the functional design.For installation, #6 x 3/4″ stainless steel sheet metal screws are provided, with slotted screw holes allowing for easy adjustments. Furthermore, the NGP 114SDKB is BHMA Certified to ANSI/BHMA A156.22, ensuring compliance with rigorous performance tests for heat and cold, and it meets multiple UL standards for fire door applications. Ideal for building professionals and informed homeowners alike, the NGP 114SDKB merges durability with style, making it an essential choice for any restroom partition project.

60″ DKB-finish Aluminum Overlapping Astragal With Silicone Seal

• Excellent flexibility and memory
• Synthetic rubber polymer: Siloxane closed cell sponge
• #6 x 3/4″ stainless steel sheet metal screws furnished
• Flame resistant
• BHMA Certified to ANSI/BHMA A156.22 performance tests for heat and cold
• Dark bronze finish
• Temperature range -100°F to 500°F, remains flexible at extreme temperatures
• Excellent resistance to ozone, UV and aging
• Screw holes slotted for adjustment
• Moisture resistant
• Recommended for areas using FM200 or Halon Fire Suppression Systems
• Silicone is black
• Aluminum alloy 6063, T5 temper

Attributes

Application: Excellent flexibility and memory

BHMA: BHMA Certified to ANSI/BHMA A156.22 performance tests for heat and cold

Color: Silicone is black

Fasteners: #6 x 3/4″ stainless steel sheet metal screws furnished

Finish: Dark bronze finish

Fire Rated: Recommended for areas using FM200 or Halon Fire Suppression Systems

Length: 60.0″

Material: Synthetic rubber polymer: Siloxane closed cell sponge

Moisture Resistant: YES

Resistance: Excellent resistance to ozone, UV and aging

Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.

Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.

Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.

Temperature Range: Temperature range -100°F to 500°F, remains flexible at extreme temperatures
