Description

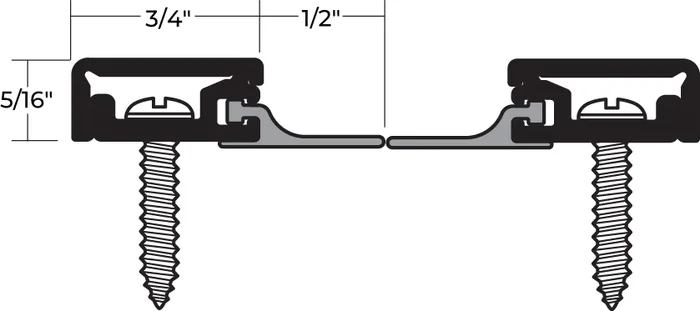

NGP 672NA (SET) 60″ Concealed Fastener NGP-TPV Perimeter Astragal
NGP 672NA (SET) 60″ Concealed Fastener NGP-TPV Perimeter Astragal offers a robust solution for your commercial restroom partition needs. Constructed from high-quality Aluminum Alloy 6063 with a T5 temper, this astragal ensures durability and long-lasting performance. The innovative design incorporates synthetic EPDM rubber within a polypropylene thermoplastic matrix, providing excellent abrasion resistance, tensile strength, and memory. Engineered to withstand a wide temperature range of -81°F to 275°F, the NGP 672NA is both flame-resistant and moisture-resistant, making it ideal for various environments. Its good resistance to ozone, sunlight, and aging guarantees that it will maintain its integrity over time.This fire-rated astragal is compliant with IBC, NFPA 80, NFPA 105, and NFPA 252 standards, ensuring it meets safety requirements for fire doors. The design includes slotted screw holes for easy adjustment and comes as a set of two pieces, finished in sleek black NGP-TPV and anodized aluminum.With included #6 x 3/4″ stainless steel SMS fasteners, the NGP 672NA guarantees secure installation, making it a reliable choice for your restroom partition hardware needs.
60″ Concealed Fastener NGP-TPV Perimeter Astragal
- Very Good Abrasion Resistance, Tensile Strength and Memory
- Flame-Resistant
- Aluminum Alloy 6063, T5 Temper
- Moisture-Resistant
- Good Resistance to Ozone, Sunlight and Aging
- IBC, NFPA 80, NFPA105, and NFPA 252 Require the Gap at the Meeting Edge Between Fire Labeled Doors Must Not Exceed 1/8″
- Fire-Rated Astragal Seals Cannot Replace any Astragal Required on the Door by the Door Manufacturer to Maintain its Fire Label
- Order as Set to Receive Two Pieces
- Temperature Range -81°F to 275°F
- Synthetic EPDM Rubber in Polypropylene Thermoplastic Matrix
- #6 x 3/4″ Stainless Steel SMS Furnished
- NGP-TPV is Black
- Anodized Aluminum
- Screw Holes Slotted for Adjustment
Attributes
Color: NGP-TPV is Black
Fasteners: #6 x 3/4″ Stainless Steel SMS Furnished
Finish: Anodized Aluminum
Fire Rated: IBC, NFPA 80, NFPA105, and NFPA 252 Require the Gap at the Meeting Edge Between Fire Labeled Doors Must Not Exceed 1/8″
Length: 60.0″
Material: Aluminum Alloy 6063, T5 Temper
Moisture Resistant: YES
Resistance: Good Resistance to Ozone, Sunlight and Aging
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Temperature Range: Temperature Range -81°F to 275°F
