Description

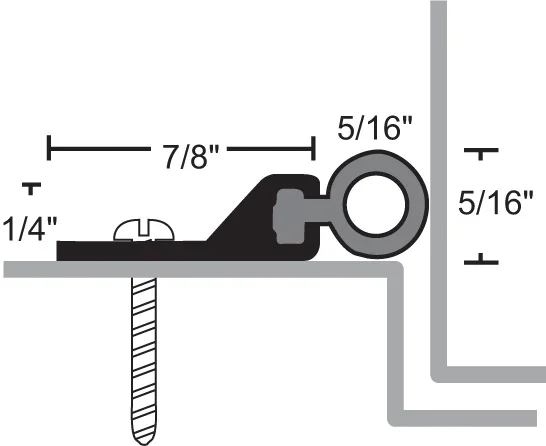

NGP 164VA 60″ Anodized Aluminum Vinyl Perimeter Seal
NGP 164VA 60″ Anodized Aluminum Vinyl Perimeter Seal offers a reliable solution for enhancing the performance and longevity of restroom partitions. Constructed from durable Aluminum Alloy 6063 with a T5 temper, this perimeter seal is designed to withstand challenging environments, making it an economical choice for commercial settings. The seal features a black thermoplastic polymer vinyl, formulated with an environmentally friendly bio-based plasticizer, ensuring both resilience and sustainability. Its flame-resistant and moisture-resistant properties provide a safe and durable barrier that can handle temperatures ranging from 0°F to 140°F. Additionally, the seal is certified by UL for fire door applications, complying with NFPA standards for both hollow metal and wood fire doors. Installation is straightforward, thanks to the included #6 x 3/4″ stainless steel sheet metal screws and slotted screw holes that allow for easy adjustment. With its robust design and effective moisture resistance, the NGP 164VA is an excellent choice for building professionals seeking dependable restroom partition hardware that meets stringent safety standards while delivering long-lasting performance.
60″ Anodized Aluminum Vinyl Perimeter Seal
- Flame-Resistant
- Aluminum Alloy 6063, T5 Temper
- Moisture-Resistant
- Temperature Range 0°F to 140°F
- Vinyl is Black
- Anodized Aluminum
- Thermoplastic Polymer: Polyvinyl Chloride Formulated With an Environmentally Friendly Bio-Based Plasticizer
- #6 x 3/4″ Stainless Steel Sheet Metal Screws Furnished
- Economical
- Oxidative Degradation From Age and Exposure to Cold, Heat and UV Causes Hardening, Loss of Memory and Resilience, Cracking, Crazing and Discoloration
- Screw Holes Slotted for Adjustment
- Temperature Range -40°F to 250°F
- Thermo-Plastic Vulcanizate (TPV)
Attributes
Color: Vinyl is Black
Fasteners: #6 x 3/4″ Stainless Steel Sheet Metal Screws Furnished
Finish: Anodized Aluminum
Fire Rated: Flame-Resistant
Length: 60.0″
Material: Thermoplastic Polymer: Polyvinyl Chloride Formulated With an Environmentally Friendly Bio-Based Plasticizer
Moisture Resistant: YES
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Temperature Range: Temperature Range 0°F to 140°F
