Description

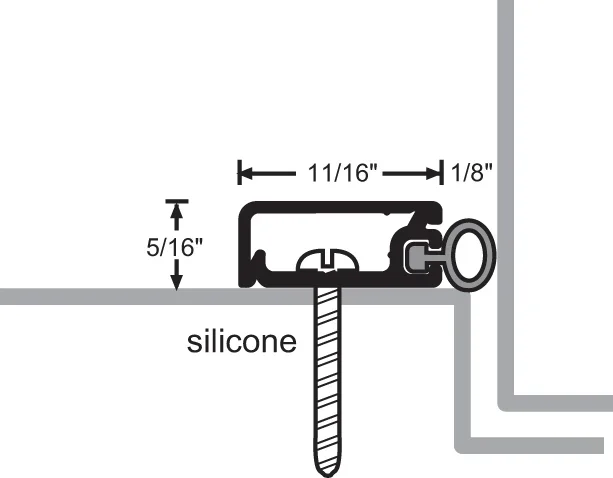

NGP 172SA 60″ Anodized Aluminum Silicone Perimeter Seal with Concealed Fasteners
NGP 172SA 60″ Anodized Aluminum Silicone Perimeter Seal with Concealed Fastener provides exceptional performance for commercial restroom applications. Constructed from durable Aluminum Alloy 6063, T5 Temper, this perimeter seal is designed to withstand a wide range of conditions, featuring a synthetic rubber polymer made from siloxane that offers excellent flexibility and memory. This product boasts outstanding resistance to moisture, ozone, UV, and aging, ensuring longevity and reliability. With a temperature range of -100°F to 500°F, it remains flexible even in extreme temperatures, making it ideal for diverse environments. Furthermore, the NGP 172SA is flame-resistant and recommended for areas utilizing FM200 or Halon fire suppression systems, enhancing safety in high-risk settings. Certified to ANSI/BHMA A156.22 performance tests for heat and cold, this perimeter seal is equipped with slotted screw holes for easy adjustment and comes with #6 x 3/4″ stainless steel sheet metal screws for secure installation. The sleek anodized aluminum finish combined with a black silicone creates a professional look that complements any restroom design. Upgrade your restroom partitions with the reliability and durability of the NGP 172SA.
60″ Anodized Aluminum Silicone Perimeter Seal with Concealed Fastener
- Flame-Resistant
- Aluminum Alloy 6063, T5 Temper
- Moisture-Resistant
- Temperature Range -100°F to 500°F, Remains Flexible at Extreme Temperatures
- Excellent Flexibility and Memory
- Silicone is Black
- BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
- Anodized Aluminum
- Excellent Resistance to Ozone, UV and Aging
- #6 x 3/4″ Stainless Steel Sheet Metal Screws Furnished
- Synthetic Rubber Polymer: Siloxane
- Recommended for Areas Using FM200 or Halon Fire Suppression Systems
- Screw Holes Slotted for Adjustment
Attributes
Application: Excellent Flexibility and Memory
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Silicone is Black
Fasteners: #6 x 3/4″ Stainless Steel Sheet Metal Screws Furnished
Finish: Anodized Aluminum
Fire Rated: Recommended for Areas Using FM200 or Halon Fire Suppression Systems
Length: 60.0″
Material: Synthetic Rubber Polymer: Siloxane
Moisture Resistant: YES
Resistance: Excellent Resistance to Ozone, UV and Aging
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature Range -100°F to 500°F, Remains Flexible at Extreme Temperatures
