Description

NGP 8138 60″ Aluminum Threshold Assembly Instructions

NGP 8138 60″ Aluminum Threshold Assembly Part is a crucial component for ensuring seamless transitions in commercial restroom environments. Crafted from durable aluminum alloy 6063 with T5 temper, this threshold assembly is designed to withstand the rigors of high-traffic areas while providing reliable performance. Measuring 1″ wide and 1/2″ tall, it provides a low-profile solution that effectively accommodates foot traffic while enhancing accessibility. Weighing in at just .27 lbs./ft., the NGP 8138 is lightweight yet robust, making installation straightforward and efficient. Its mill finish offers a sleek and modern aesthetic, blending effortlessly with various design schemes.This product is not only functional but also certified for safety and compliance. It meets rigorous standards, including UL certifications for application to both hollow metal and wood fire doors, rated up to 3 hours and 90 minutes respectively. Additionally, it complies with ANSI/BHMA standards, ensuring it can withstand a 1,000 lb. load test, making it a reliable choice for demanding environments. With the ability to ship via UPS, the NGP 8138 threshold assembly is a practical solution for building professionals seeking quality and performance in restroom partition hardware.

60″ Aluminum Threshold Assembly Part

• Mill finish
• Weight: .27 lbs./ft.
• Aluminum alloy 6063, T5 temper
• Threshold assembly component

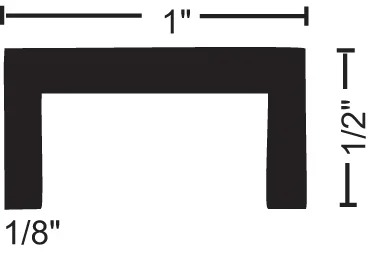

• 1″ wide x 1/2″ tall

Attributes

Dimensions: 1″ wide x 1/2″ tall

Finish: Mill finish

Length: 60.0″

Material: Aluminum alloy 6063, T5 temper

Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-2: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.

Weight: Weight: .27 lbs./ft.
