Description

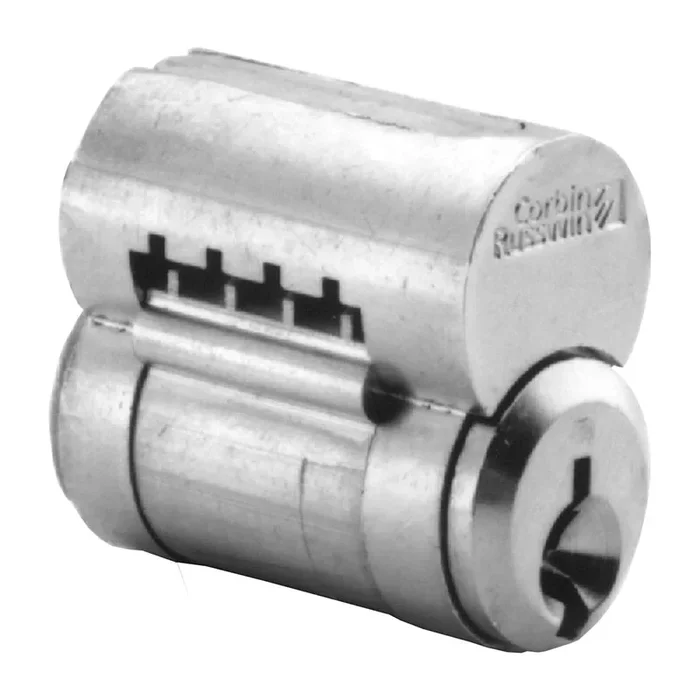

Corbin Russwin 8000-N3 606 6-Pin LFIC Core N3 Keyway

Corbin Russwin 8000-N3 606 6-Pin LFIC Core N3 Keyway is designed to deliver exceptional security and rekeying versatility for various applications. This 6-pin interchangeable core features a durable satin brass finish, ensuring both aesthetic appeal and longevity. Crafted from solid brass, the core is compatible with Corbin Russwin 8000 Series mortise and rim housings, accommodating both 6 and 7-pin versions. Rekeying is simplified, allowing non-technical personnel to perform the task without removing hardware from the door, making it an ideal choice for office buildings, hotels, schools, hospitals, and universities. The interchangeable core system provides significant time and cost savings over the life of a building, especially in installations that require frequent rekeying. To operate, all keys-change, master, and grand master-function as expected, while a special control key allows for easy removal and installation of the core. Optional concealed key control (CKC) is available for enhanced security, and temporary construction cores can be implemented for added protection during project phases. With a one-year limited warranty, the Corbin Russwin 8000-N3 ensures reliability and peace of mind for both commercial and residential use.

6-Pin LFIC Core N3 Keyway

6-Pin Interchangeable Core, N3 Keyway, Satin Brass Finish

Corbin Russwin Interchangeable Core Mortise and Rim Housings are made from soldi brass and are available to accept Corbin Russwin 8000 Series Interchangeable Cores in 6 or 7-Pin versions.

Interchangeable cores provide rekeying convenience for virtually all types of keying systems.

Interchangeable cores like thissavetime and money over the life of a building.

• Advantages

Rekeying can be done by non-technical personnel without removing hardware from the door. When used system wide, IC provides tremendous rekeying convenience. When planned from the inception of a system, IC cylinders can be integrated with conventional cylinders.

• Applications

IC is recommended for virtually all types of keying systems, such as office buildings, hotels, schools, hospitals and universities. When used in exit devices and other installations which are labor intensive to rekey, IC saves time and money over the life of the building.

• Operations

All operating keys (change, master, grand master) operate the lock normally. To rekey, use the special control key. The control key operates at a separate shear line in certain chambers within the core. Only the control key is required to remove and install a core.

• Cores

Cores are available in 6-pin (standard), 7-pin, security and Pyramid.

• Construction Keying

Corbin Russwin recommends temporary construction cores for greater security. Special construction master keying is also available, when planned from the inception of the keying system.

• Core Marking

Concealed Key Control (CKC) is available for all Corbin Russwin cores.

Attributes

Baa Qualified: Yes

Base Material: Brass

Commercial Residential: Commercial

Country of origin: USA

Cylinder Type: LFIC Core

Finish: 606/US4

Finish Family: Matte Brass

Installation: Commercial

Keying: 0-Bitted

Keys: Blank

Limited Warranty: 1 Year

Of Keys: 2

Origin: USA

Pack Height: 2.5″

Pack Height 2: 6″

Pack Length: 2.75″

Pack Length 2: 16.25″

Pack Qty: 1

Pack Volume: 13.75 in³

Pack Volume 2: 1023.75 in³

Pack Width: 2″

Pack Width 2: 10.5″

Pins: 6

Series: Interchangeable Core Cylinders

Ship Weight: 0.2 lbs.

Std Keyway: N3

Subtype: LFIC Core

Type: Locks, Cylinders, Cores, Keyblanks

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 32

Resources

• Interchangeable Core Cylinders Cut Sheet
• Key Systems Catalog
• Video: Interchangeable Core Installation
