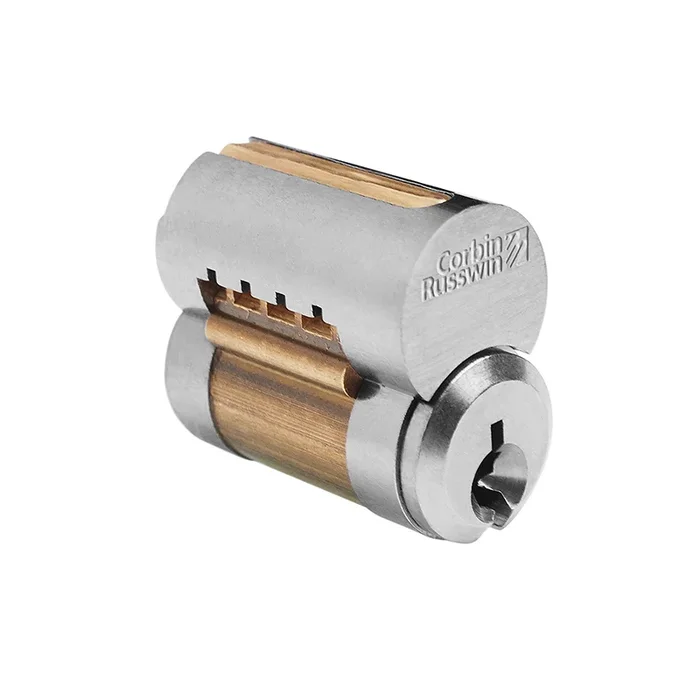

6-Pin LFIC Core N24 Keyway by Corbin Russwin – High Security Door Lock Cylinder

Description

Corbin Russwin 8000-N24 626 6-Pin LFIC Core N24 Keyway

Corbin Russwin 8000-N24 626 6-Pin LFIC Core N24 Keyway offers an efficient and reliable solution for your locking needs. Designed with a 6-pin interchangeable core, this product features a satin chrome finish that not only enhances its aesthetic appeal but also ensures durability. The solid brass construction of the interchangeable core mortise and rim housings provides exceptional resilience, making it suitable for various applications, including office buildings, hotels, schools, hospitals, and universities. One of the standout advantages of this system is its rekeying convenience. Non-technical personnel can easily rekey the lock without removing the hardware from the door, significantly saving time and costs over the life of the building. The interchangeable cores can be integrated with conventional cylinders, allowing for a cohesive keying system. The standard operating keys (change, master, grand master) function normally, while a special control key is used for rekeying, operating at a separate shear line. This model is part of the Interchangeable Core Cylinder series and includes two keys with a limited one-year warranty. With its BAA qualification and commercial-grade specifications, the Corbin Russwin 8000-N24 is a top-tier choice for secure and efficient access control.

6-Pin LFIC Core N24 Keyway

6-Pin Interchangeable Core, N24 Keyway, Satin Chrome Finish

Corbin Russwin Interchangeable Core Mortise and Rim Housings are made from soldi brass and are available to accept Corbin Russwin 8000 Series Interchangeable Cores in 6 or 7-Pin versions.

Interchangeable cores provide rekeying convenience for virtually all types of keying systems.

Interchangeable cores like thissavetime and money over the life of a building.

• Advantages

Rekeying can be done by non-technical personnel without removing hardware from the door. When used system wide, IC provides tremendous rekeying convenience. When planned from the inception of a system, IC cylinders can be integrated with conventional cylinders.

• Applications

IC is recommended for virtually all types of keying systems, such as office buildings, hotels, schools, hospitals and universities. When used in exit devices and other installations which are labor intensive to rekey, IC saves time and money over the life of the building.

• Operations

All operating keys (change, master, grand master) operate the lock normally. To rekey, use the special control key. The control key operates at a separate shear line in certain chambers within the core. Only the control key is required to remove and install a core.

• Cores

Cores are available in 6-pin (standard), 7-pin, security and Pyramid.

• Construction Keying

Corbin Russwin recommends temporary construction cores for greater security. Special construction master keying is also available, when planned from the inception of the keying system.

• Core Marking

Concealed Key Control (CKC) is available for all Corbin Russwin cores.

Attributes

Baa Qualified: Yes

Base Material: Brass or Bronze

Commercial Residential: Commercial

Country of origin: USA

Cylinder Type: LFIC Core

Finish: 626/US26D

Finish Family: Matte Silver

Installation: Commercial

Keying: 0-Bitted

Keys: Blank

Limited Warranty: 1 Year

Of Keys: 2

Origin: USA

Pack Height: 2.5″

Pack Height 2: 6″

Pack Length: 2.75″

Pack Length 2: 16.25″

Pack Qty: 1

Pack Volume: 13.75 in³

Pack Volume 2: 1023.75 in³

Pack Width: 2″

Pack Width 2: 10.5″

Pins: 6

Series: Interchangeable Core Cylinders

Ship Weight: 0.2 lbs.

Std Keyway: N24

Subtype: LFIC Core

Type: Locks, Cylinders, Cores, Keyblanks

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 32

Resources

• Interchangeable Core Cylinders Cut Sheet
• Key Systems Catalog
• Video: Interchangeable Core Installation
