6-Pin LFIC Core N13 Keyway – Corbin Russwin

Description

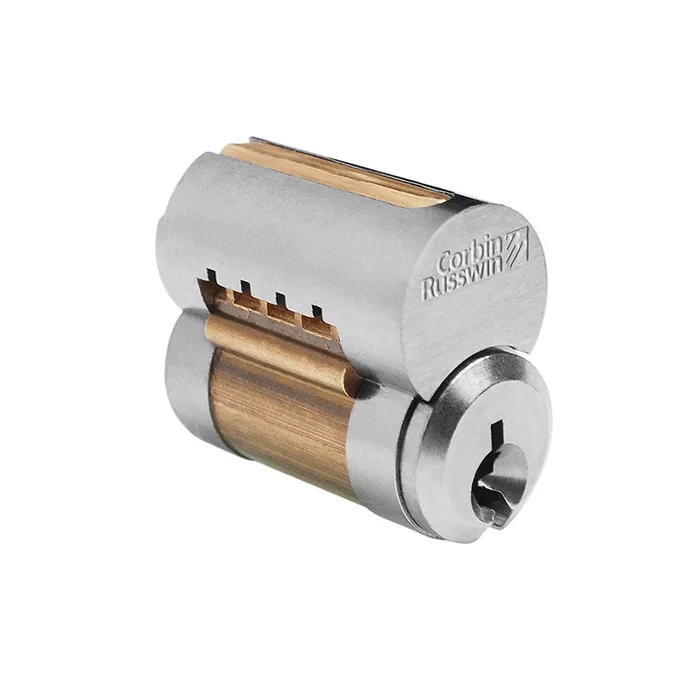

Corbin Russwin 8000-N13 626 6-Pin LFIC Core N13 Keyway

Corbin Russwin 8000-N13 626 6-Pin LFIC Core N13 Keyway offers an efficient and secure locking solution for a variety of applications. Designed with a 6-pin interchangeable core, this model is compatible with the Corbin Russwin 8000 Series, making it an ideal choice for both mortise and rim housings. The satin chrome finish not only enhances its aesthetic appeal but also provides durability for commercial use. One of the standout features of this LFIC core is its rekeying convenience. It allows non-technical personnel to rekey without removing the hardware from the door, saving valuable time and reducing labor costs over the life of the building. This core is recommended for diverse environments such as office buildings, hotels, schools, and hospitals, where quick and efficient rekeying is essential. The operation is straightforward, utilizing a special control key to remove and install the core at a separate shear line. Additionally, Corbin Russwin offers concealed key control (CKC) for enhanced security. With a limited one-year warranty, the 8000-N13 core exemplifies reliability and convenience, making it a smart investment for any keying system.

6-Pin LFIC Core N13 Keyway

6-Pin Interchangeable Core, N13 Keyway, Satin Chrome Finish

Corbin Russwin Interchangeable Core Mortise and Rim Housings are made from soldi brass and are available to accept Corbin Russwin 8000 Series Interchangeable Cores in 6 or 7-Pin versions.

Interchangeable cores provide rekeying convenience for virtually all types of keying systems.

Interchangeable cores like thissavetime and money over the life of a building.

• Advantages

Rekeying can be done by non-technical personnel without removing hardware from the door. When used system wide, IC provides tremendous rekeying convenience. When planned from the inception of a system, IC cylinders can be integrated with conventional cylinders.

• Applications

IC is recommended for virtually all types of keying systems, such as office buildings, hotels, schools, hospitals and universities. When used in exit devices and other installations which are labor intensive to rekey, IC saves time and money over the life of the building.

• Operations

All operating keys (change, master, grand master) operate the lock normally. To rekey, use the special control key. The control key operates at a separate shear line in certain chambers within the core. Only the control key is required to remove and install a core.

• Cores

Cores are available in 6-pin (standard), 7-pin, security and Pyramid.

• Construction Keying

Corbin Russwin recommends temporary construction cores for greater security. Special construction master keying is also available, when planned from the inception of the keying system.

• Core Marking

Concealed Key Control (CKC) is available for all Corbin Russwin cores.

Attributes

Baa Qualified: Yes

Base Material: Brass or Bronze

Commercial Residential: Commercial

Country of origin: USA

Cylinder Type: LFIC Core

Finish: 626/US26D

Finish Family: Matte Silver

Installation: Commercial

Keying: 0-Bitted

Keys: Blank

Limited Warranty: 1 Year

Of Keys: 2

Origin: USA

Pack Height: 2.5″

Pack Height 2: 6″

Pack Length: 2.75″

Pack Length 2: 16.25″

Pack Qty: 1

Pack Volume: 13.75 in³

Pack Volume 2: 1023.75 in³

Pack Width: 2″

Pack Width 2: 10.5″

Pins: 6

Series: Interchangeable Core Cylinders

Ship Weight: 0.2 lbs.

Std Keyway: N13

Subtype: LFIC Core

Type: Locks, Cylinders, Cores, Keyblanks

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 32

Resources

• Interchangeable Core Cylinders Cut Sheet
• Key Systems Catalog
• Video: Interchangeable Core Installation
