6-Pin LFIC Core 99 Keyway – Corbin Russwin

Description

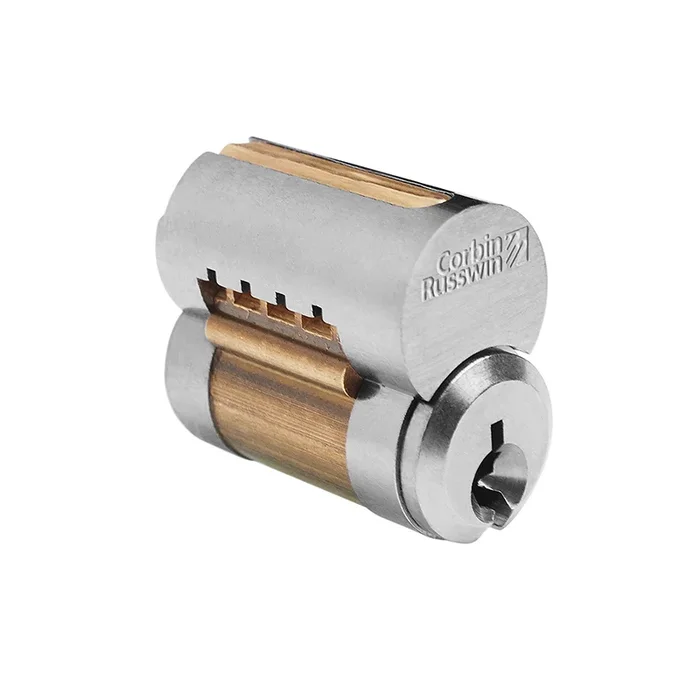

Corbin Russwin 8000-99 626 6-Pin LFIC Core, 99 Keyway

Corbin Russwin 8000-99 626 6-Pin LFIC Core 99 Keyway offers a robust and reliable locking solution ideal for commercial applications. This 6-pin interchangeable core features a satin chrome finish, ensuring both durability and a sleek appearance. Designed for use with Corbin Russwin’s 8000 Series Mortise and Rim Housings, this core provides exceptional rekeying convenience across various keying systems. The interchangeable core technology allows for rekeying without the need to remove hardware from the door, saving valuable time and money-especially in labor-intensive installations such as exit devices. With the capability to integrate seamlessly into both conventional and interchangeable core systems, it’s an excellent choice for office buildings, hotels, schools, hospitals, and universities. All operating keys, including change, master, and grand master, function normally, while a special control key is used for rekeying purposes, operating at a separate shear line for added security. Corbin Russwin also offers the option of concealed key control (CKC) for enhanced management of access. This LFIC core is proudly made in the USA and is backed by a one-year limited warranty, making it a dependable choice for any professional looking to enhance security.

6-Pin LFIC Core 99 Keyway

6-Pin Interchangeable Core, 99 Keyway, Satin Chrome Finish

Corbin Russwin Interchangeable Core Mortise and Rim Housings are made from soldi brass and are available to accept Corbin Russwin 8000 Series Interchangeable Cores in 6 or 7-Pin versions.

Interchangeable cores provide rekeying convenience for virtually all types of keying systems.

Interchangeable cores like thissavetime and money over the life of a building.

• Advantages

Rekeying can be done by non-technical personnel without removing hardware from the door. When used system wide, IC provides tremendous rekeying convenience. When planned from the inception of a system, IC cylinders can be integrated with conventional cylinders.

• Applications

IC is recommended for virtually all types of keying systems, such as office buildings, hotels, schools, hospitals and universities. When used in exit devices and other installations which are labor intensive to rekey, IC saves time and money over the life of the building.

• Operations

All operating keys (change, master, grand master) operate the lock normally. To rekey, use the special control key. The control key operates at a separate shear line in certain chambers within the core. Only the control key is required to remove and install a core.

• Cores

Cores are available in 6-pin (standard), 7-pin, security and Pyramid.

• Construction Keying

Corbin Russwin recommends temporary construction cores for greater security. Special construction master keying is also available, when planned from the inception of the keying system.

• Core Marking

Concealed Key Control (CKC) is available for all Corbin Russwin cores.

Attributes

Baa Qualified: Yes

Base Material: Brass or Bronze

Commercial Residential: Commercial

Country of origin: USA

Cylinder Type: LFIC Core

Finish: 626/US26D

Finish Family: Matte Silver

Installation: Commercial

Keying: 0-Bitted

Keys: Blank

Limited Warranty: 1 Year

Of Keys: 2

Origin: USA

Pack Height: 2.5″

Pack Height 2: 6″

Pack Length: 2.75″

Pack Length 2: 16.25″

Pack Qty: 1

Pack Volume: 13.75 in³

Pack Volume 2: 1023.75 in³

Pack Width: 2″

Pack Width 2: 10.5″

Pins: 6

Series: Interchangeable Core Cylinders

Ship Weight: 0.2 lbs.

Std Keyway: 99

Subtype: LFIC Core

Type: Locks, Cylinders, Cores, Keyblanks

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 32

Resources

• Interchangeable Core Cylinders Cut Sheet
• Key Systems Catalog
• Video: Interchangeable Core Installation
