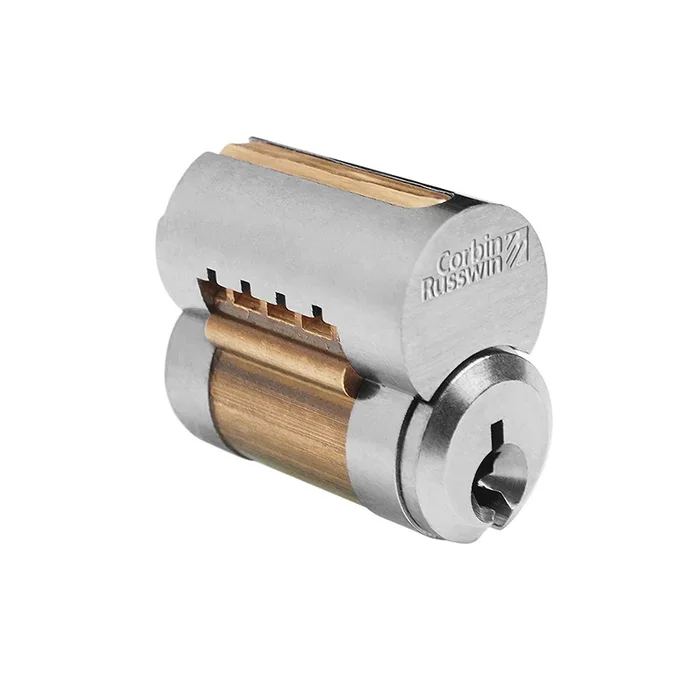

6-Pin LFIC Core 983 Keyway – Corbin Russwin

Description

Corbin Russwin 8000-983 626 6-Pin LFIC Core 983 Keyway

Corbin Russwin 8000-983 626 6-Pin LFIC Core 983 Keyway offers a robust and efficient solution for your keying needs. Featuring a 6-pin interchangeable core with a satin chrome finish, this product is designed for seamless integration into Corbin Russwin’s 8000 Series Mortise and Rim Housings, crafted from solid brass.The interchangeable core system allows for effortless rekeying without the need to remove hardware from the door, making it ideal for commercial applications such as office buildings, hotels, schools, and hospitals. This convenience translates to significant time and cost savings over the life of a building, especially in installations that require frequent rekeying. All operating keys-including change, master, and grand master keys-function normally, with a special control key enabling the rekeying process at a separate shear line within the core. The Corbin Russwin 8000-983 is also compatible with conventional cylinders and can accommodate construction master keying for enhanced security during the building process.With Concealed Key Control (CKC) available, you can maintain strict access control tailored to your needs. Experience the reliability and versatility of the Corbin Russwin 8000-983 LFIC Core for your next project.

6-Pin LFIC Core 983 Keyway

6-Pin Interchangeable Core, 983 Keyway, Satin Chrome Finish

Corbin Russwin Interchangeable Core Mortise and Rim Housings are made from soldi brass and are available to accept Corbin Russwin 8000 Series Interchangeable Cores in 6 or 7-Pin versions.

Interchangeable cores provide rekeying convenience for virtually all types of keying systems.

Interchangeable cores like thissavetime and money over the life of a building.

• Advantages

Rekeying can be done by non-technical personnel without removing hardware from the door. When used system wide, IC provides tremendous rekeying convenience. When planned from the inception of a system, IC cylinders can be integrated with conventional cylinders.

• Applications

IC is recommended for virtually all types of keying systems, such as office buildings, hotels, schools, hospitals and universities. When used in exit devices and other installations which are labor intensive to rekey, IC saves time and money over the life of the building.

• Operations

All operating keys (change, master, grand master) operate the lock normally. To rekey, use the special control key. The control key operates at a separate shear line in certain chambers within the core. Only the control key is required to remove and install a core.

• Cores

Cores are available in 6-pin (standard), 7-pin, security and Pyramid.

• Construction Keying

Corbin Russwin recommends temporary construction cores for greater security. Special construction master keying is also available, when planned from the inception of the keying system.

• Core Marking

Concealed Key Control (CKC) is available for all Corbin Russwin cores.

Attributes

Baa Qualified: Yes

Base Material: Brass or Bronze

Commercial Residential: Commercial

Country of origin: USA

Cylinder Type: LFIC Core

Finish: 626/US26D

Finish Family: Matte Silver

Installation: Commercial

Keying: 0-Bitted

Keys: Blank

Limited Warranty: 1 Year

Of Keys: 2

Origin: USA

Pack Height: 2.5″

Pack Height 2: 6″

Pack Length: 2.75″

Pack Length 2: 16.25″

Pack Qty: 1

Pack Volume: 13.75 in³

Pack Volume 2: 1023.75 in³

Pack Width: 2″

Pack Width 2: 10.5″

Pins: 6

Series: Interchangeable Core Cylinders

Ship Weight: 0.2 lbs.

Std Keyway: 983

Subtype: LFIC Core

Type: Locks, Cylinders, Cores, Keyblanks

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 32

Resources

• Interchangeable Core Cylinders Cut Sheet
• Key Systems Catalog
• Video: Interchangeable Core Installation
