6-Pin LFIC Core 27 Keyway – Corbin Russwin

Description

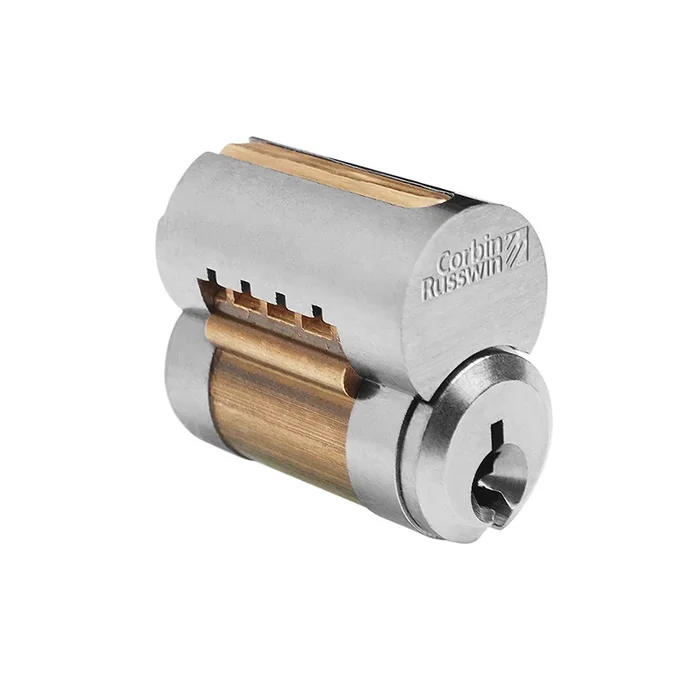

Corbin Russwin 8000-27 626 6-Pin LFIC Core with 27 Keyway

Corbin Russwin 8000-27 626 6-Pin LFIC Core 27 Keyway offers a reliable solution for your keying needs with its 6-pin interchangeable core design. Finished in a sleek satin chrome, this durable core is crafted from solid brass, ensuring long-lasting performance and aesthetic appeal. Designed for use in a variety of applications, including office buildings, hotels, schools, and hospitals, it provides exceptional rekeying convenience without the need to remove hardware from the door. This LFIC core allows for seamless integration with Corbin Russwin’s 8000 Series interchangeable cores, available in both 6-pin and 7-pin versions. One of its standout features is the ability for rekeying to be performed by non-technical personnel using a special control key, which operates at a separate shear line within the core. This saves both time and money over the life of the building, especially in labor-intensive installations. With a standard keyway of 27, the Corbin Russwin 8000-27 core is an ideal choice for commercial environments where security and efficiency are paramount. Supported by a one-year limited warranty, it is a dependable addition to any door hardware system.

6-Pin LFIC Core 27 Keyway

6-Pin Interchangeable Core, 27 Keyway, Satin Chrome Finish

Corbin Russwin Interchangeable Core Mortise and Rim Housings are made from soldi brass and are available to accept Corbin Russwin 8000 Series Interchangeable Cores in 6 or 7-Pin versions.

Interchangeable cores provide rekeying convenience for virtually all types of keying systems.

Interchangeable cores like thissavetime and money over the life of a building.

• Advantages

Rekeying can be done by non-technical personnel without removing hardware from the door. When used system wide, IC provides tremendous rekeying convenience. When planned from the inception of a system, IC cylinders can be integrated with conventional cylinders.

• Applications

IC is recommended for virtually all types of keying systems, such as office buildings, hotels, schools, hospitals and universities. When used in exit devices and other installations which are labor intensive to rekey, IC saves time and money over the life of the building.

• Operations

All operating keys (change, master, grand master) operate the lock normally. To rekey, use the special control key. The control key operates at a separate shear line in certain chambers within the core. Only the control key is required to remove and install a core.

• Cores

Cores are available in 6-pin (standard), 7-pin, security and Pyramid.

• Construction Keying

Corbin Russwin recommends temporary construction cores for greater security. Special construction master keying is also available, when planned from the inception of the keying system.

• Core Marking

Concealed Key Control (CKC) is available for all Corbin Russwin cores.

Attributes

Baa Qualified: Yes

Base Material: Brass or Bronze

Commercial Residential: Commercial

Country of origin: USA

Cylinder Type: LFIC Core

Finish: 626/US26D

Finish Family: Matte Silver

Installation: Commercial

Keying: 0-Bitted

Keys: Blank

Limited Warranty: 1 Year

Of Keys: 2

Origin: USA

Pack Height: 2.5″

Pack Height 2: 6″

Pack Length: 2.75″

Pack Length 2: 16.25″

Pack Qty: 1

Pack Volume: 13.75 in³

Pack Volume 2: 1023.75 in³

Pack Width: 2″

Pack Width 2: 10.5″

Pins: 6

Series: Interchangeable Core Cylinders

Ship Weight: 0.2 lbs.

Std Keyway: 27

Subtype: LFIC Core

Type: Locks, Cylinders, Cores, Keyblanks

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 32

Resources

• Interchangeable Core Cylinders Cut Sheet
• Key Systems Catalog
• Video: Interchangeable Core Installation
