Description

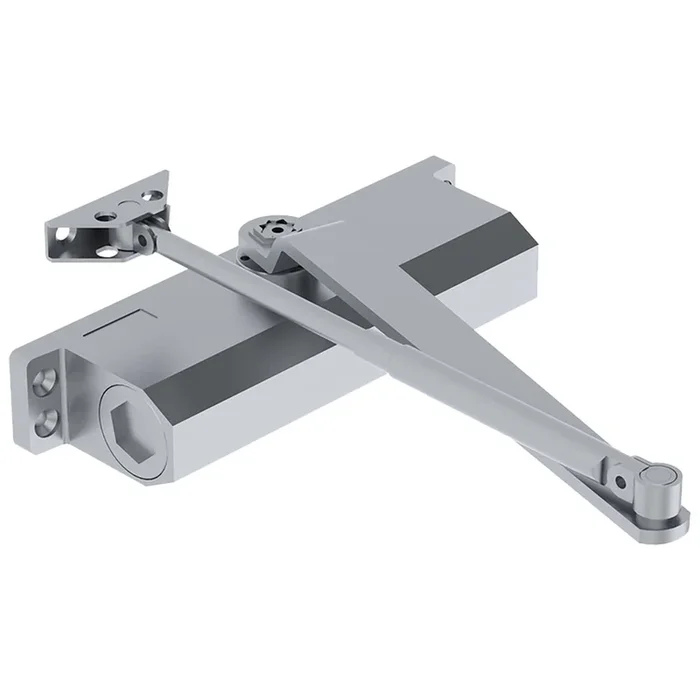

Hager 5400-MLT ALM 5400 Multi-Mount Door Closer

Hager 5400-MLT ALM 5400 Multi Mount Closer offers an effective solution for light-duty commercial applications, providing reliability and versatility. Designed as a Grade 2 surface closer, this model features a push or pull side tri-mount installation and a regular double lever arm, allowing for an adjustable sizing range from size 2 to 5. With an aluminum finish in a sleek matte silver, it seamlessly integrates into various environments while ensuring durability. The 5400 Series Closers are equipped with a heat-treated steel piston and triple heat-treated steel spindle, ensuring long-lasting performance. Its non-handed design allows for installation on doors of either hand, making it a flexible choice for various setups. With a maximum door weight capacity of 250 lbs., this closer is ideal for managing the demands of busy commercial entrances. Additionally, the Hager 5400-MLT is fire-rated for up to 3 hours, providing an added layer of safety. Backed by a 5-year limited warranty, this closer is not only a practical choice but also a reliable investment for maintaining door function and security. Whether you’re a building professional or a homeowner, the Hager 5400 Multi Mount Closer combines functionality with quality.

5400 MULTI MOUNT CLOSER

Grade 2 Surface Closer, Push or Pull Side Tri Mount Mounting, Regular Double Lever Arm, Size 2 to 5 Adjustable, Aluminum Finish, Non-Handed

5400 Series Closers are ideal for light duty commercial applications. 5400 Series Closers have a heat treated steel piston and triple heat treated steel spindle. The closers are non-handed to permit installation on doors of either hand. The sizing is adjustable from size 2 through size 5. The design features make this closer the ideal choice for doors with a maximum weight of 200 lbs.

Hager has a wide variety of all types of door controls ranging from overhead to electromagnetic.

Several Hager door closer series includes: 5100 Series – Grade 1, 5200 Series – Grade 1, 5300 Series – Grade 1, 5400 Series – Grade 2.

Attributes

Manufacturer surcharge: 8.75%

Arm Type: Regular Double Lever Arm

Closer Size: 2 to 5

Commercial Residential: Commercial

Door Weight: Maximum 250 lbs.

Finish: 689/US28

Finish Family: Matte Silver

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Grade: Grade 2

Handing: Non-Handed

Hold Open: No

Installation: Commercial

Limited Warranty: 5 Years

Mounting Location: Push or Pull Side

Mounting Style: Tri Mount

Pack Qty: 1

Screw Type: Machine and Wood

Series: Hager Door Coordinators and Closers

Special Rust Inhibitor: Yes

Subtype: Surface Closers

Type: Surface

Unit of Measure: Each

Resources

• 5100 Series Door Closer – Delayed Action Instruction Sheet
• 5100 Series Instruction Sheet
• 5125, 5106, 5108, 5961 Heavy Duty Parallel Arm Instruction Sheet
• 5200 Series Door Closer Instruction Sheets
• 5300 Series Door Closer Instruction Sheet
• 5400 Series Non-Hold Open Door Closer Instruction Sheets
• Adjusting the 5100 Door Closer
• Hager – Door Closer ANSI Reference Sheet
• Hager 8400 Series Low Energy Door Power Operator Installation
• Hager Door Closers – How to Order Guide
• Hager Door Coordinators and Closers Cut Sheet
• Hager Test Report for 5400 Series Door Closer
