CRL 501CP2RMBL Matte Black 50 Series Telescoping Ceiling Mount Kit – Right Stacking
C.R. Laurence 501CP2RMBL 50 Matte Black Series Two Panel Telescoping Behind Fixed Panel Ceiling Mount Kit – Right Stacking Direction offers an innovative solution for your architectural needs. Designed for 5/16″ or 3/8″ (8 or 10 mm) tempered glass doors, this kit supports a sleek telescoping operation that allows two panels to slide in the same direction and stack neatly together.Engineered to accommodate doors weighing up to 176 lbs. (80 kg) and a maximum door width of 40-3/8″ (1025 mm), this system ensures both durability and functionality. It is important to note that only monolithic tempered glass should be used with this kit, as laminated glass is not compatible.The kit includes everything needed for installation, except for the tempered glass itself, making the setup process straightforward. Available in a matte black finish, the CRL 501CP2RMBL can also be customized in a variety of architectural finishes to match your design vision.With a track length of 118 in. (2997 mm) and a top-hung mounting application, this ceiling mount kit blends seamlessly into both commercial and residential environments. Contact C.R. Laurence Technical Sales for assistance with selection or installation.

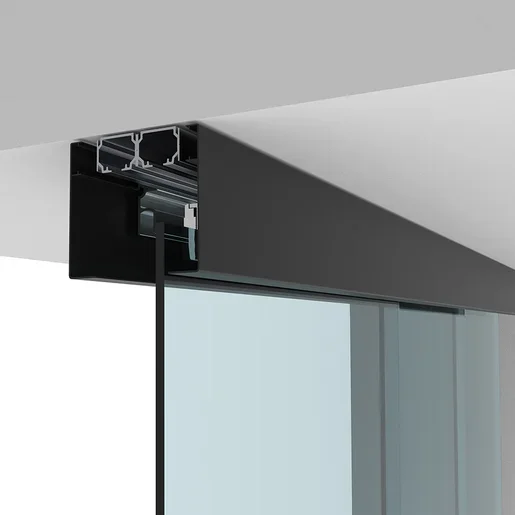

50 Matte Black Series Two Panel Telescoping Behind Fixed Panel Ceiling Mount Kit – Right Stacking Direction
- Telescoping Operation for 5/16″ or 3/8″ (8 or 10 mm) Tempered Glass Doors
- Use Monolithic Tempered Glass
- Can Accommodate Doors Weighing Up to 176 Lbs. (80 kg), Maximum Door Width of 40-3/8″ (1025 mm)
There are eight configurations of CRL50 Series Kits for telescoping 5/16″ to 3/8″ (8 to 10 mm) tempered glass doors. These Kits provide telescoping operation where two panels slide in the same direction and stack away together. All come with everything you need (except the tempered glass) to complete the installation. Kits are available in a satin anodized finish, with an option for powder paint or cladding in any architectural finish desired.
Contact Technical Sales for Commercial Products for kit selection or installation assistance.
NOTE: Laminated glass should not be used with the CRL50 System.
Product Warning:
STRUCTURAL DISCLAIMER – All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Attributes
Ship via: No UPS – Common Carrier Only
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Finish/ Color:: Matte Black
Glazing Thickness: 3/8 in. (10 mm)
Glazing Type: Tempered Insulated
Maximum Panel Weight: 100 lbs. (45.4 kg)
Mounting Application: Ceiling
Shipping Limitations: None
Top Hung: Yes
Track Length: 118 in. (2997 mm)
Resources
- CRL50 Series CAD Drawings.dwg
- CRL50 Series CAD Drawings.pdf
- CRL50CP2R CRL501CP2R Installation Instructions
