Description

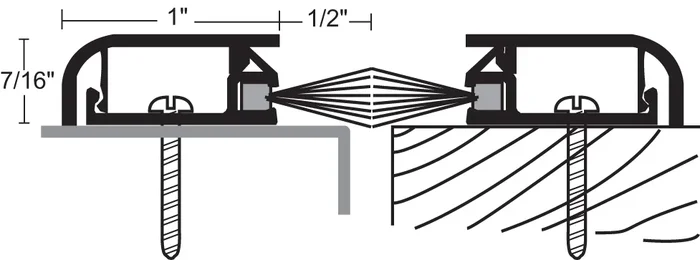

NGP 675A (SET) 48″ Anodized Aluminum Surface-Mounted Astragal
NGP 675A (SET) 48″ Anodized Aluminum Surface Mounted Astragal offers a robust solution for enhancing the functionality and durability of your commercial restroom partitions. Crafted from high-quality aluminum alloy 6063 with T5 temper, this astragal stands out with its excellent abrasion resistance and flexibility, ensuring long-lasting performance even in high-traffic areas. Designed with a synthetic polymer, polyamide, the NGP 675A is moisture-resistant and retains insecticides effectively, making it ideal for various environments. It boasts a wide temperature range, performing reliably from -70°F to 425°F. BHMA certified to ANSI/BHMA A156.22 performance tests for heat and cold, this product ensures compliance with rigorous industry standards. Installation is straightforward, featuring slotted screw holes for adjustment and furnished with #6 x 3/4″ stainless steel sheet metal screws. The nylon brush, in a sleek gray color, complements the anodized aluminum finish, providing an aesthetically pleasing look while enhancing functionality.When ordered as a set, you receive two pieces, making it a practical choice for your partition needs. The NGP 675A is REACH and RoHS compliant, ensuring safety and environmental responsibility in your project. Choose NGP for high-quality partition hardware that combines reliability with innovation.
48″ Anodized Aluminum Surface Mounted Astragal
- #6 x 3/4″ stainless steel sheet metal screws furnished
- Temperature range -70°F to 425°F
- REACH and RoHS compliant
- Not effective against water penetration
- Anodized aluminum
- Nylon brush is gray
- Retains insecticides well
- Order as set to receive two pieces
- BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
- Moisture resistant
- Aluminum alloy 6063, T5 temper
- Synthetic polymer: Polyamide
- Screw holes are slotted for adjustment
- Excellent abrasion resistance, flexibility and memory
Attributes
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Nylon brush is gray
Fasteners: #6 x 3/4″ stainless steel sheet metal screws furnished
Finish: Anodized aluminum
Length: 48.0″
Material: Synthetic polymer: Polyamide
Moisture Resistant: YES
Resistance: Excellent abrasion resistance, flexibility and memory
Ro HS: REACH and RoHS compliant
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature range -70°F to 425°F
