48″ Anodized Aluminum Extended Door Shoe with Thermoplastic Insert – NGP

Description

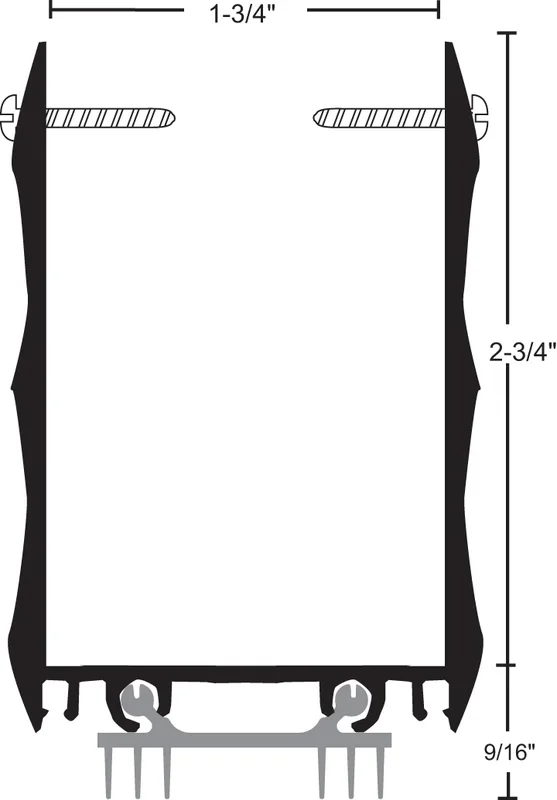

NGP 99T6A 48″ Anodized Aluminum Extended Door Shoe with Thermoplastic Insert

NGP 99T6A 48″ Anodized Aluminum Extended Door Shoe with Thermoplastic Insert is designed to enhance the durability and functionality of your commercial restroom partitions. Constructed from high-quality aluminum alloy 6063 with a T5 temper, this door shoe is built for both strength and longevity. The thermoplastic polymer insert is made from environmentally friendly PVC, ensuring that it is not only economical but also flame and moisture resistant. Measuring a generous 48 inches in length, the NGP 99T6A provides excellent coverage, while its dark brown seal features a rigid base and soft vinyl fins, effectively blocking drafts and moisture. This door shoe performs well in temperature ranges from 0°F to 140°F, making it suitable for a variety of environments. The NGP 99T6A is equipped with #6 x 3/4″ stainless steel SMS fasteners, ensuring secure installation. Additionally, end caps are available for purchase separately to complete your setup. Certified by UL for various fire safety standards, this product meets NFPA regulations for use with hollow metal and wood fire doors, providing peace of mind in safety-conscious applications. Choose NGP for reliable, high-performance restroom partition hardware that stands the test of time.

48″ Anodized Aluminum Extended Door Shoe with Thermoplastic Insert

• Thermoplastic polymer: Polyvinyl Chloride (PVC) formulated with an environmentally friendly Bio-based plasticizer
• Oxidative degradation from age and exposure to cold, heat and UV causes hardening, loss of memory and resilience, cracking, crazing and discoloration
• Anodized aluminum
• Seal with rigid base and soft vinyl fins is dark brown
• Flame resistant
• Temperature range 0°F to 140°F
• 48″ maximum length
• Moisture resistant
• #6 x 3/4″ stainless steel SMS furnished
• Aluminum alloy 6063, T5 temper
• Economical
• End caps available – sold separately

Attributes

Color: Oxidative degradation from age and exposure to cold, heat and UV causes hardening, loss of memory and resilience, cracking, crazing and discoloration

Fasteners: #6 x 3/4″ stainless steel SMS furnished

Finish: Anodized aluminum

Fire Rated: Flame resistant

Length: 48.0″

Material: Thermoplastic polymer: Polyvinyl Chloride (PVC) formulated with an environmentally friendly Bio-based plasticizer

Maximum Length: 48″ maximum length

Moisture Resistant: YES

Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.

Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.

Temperature Range: Temperature range 0°F to 140°F
