Description

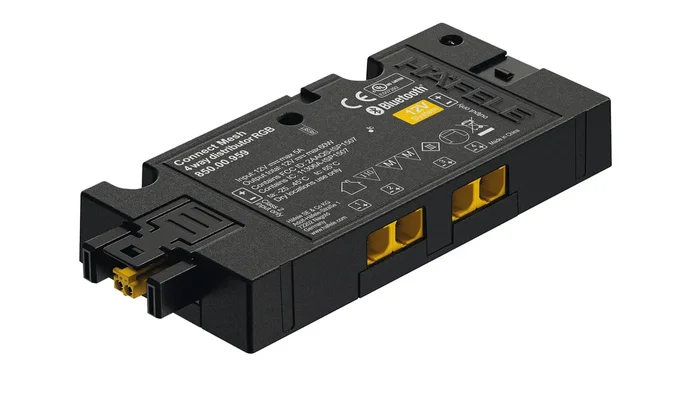

Hafele 850.00.959 Hafele Connect Mesh Eco 4-Port 12V 1-Channel Distributor
Hafele 850.00.959 4-way distributor (1-channel) is an essential component designed for extending your existing RGB lighting setups. This individual Connect Mesh RGB distributor allows you to enhance pre-paired sets, making it perfect for smaller installations that require up to four distributors and a single remote control. Easily pair it with a remote-no app is needed-streamlining your lighting management. Engineered for versatility, this distributor supports switching on/off, dimming from 0-100%, and color temperature adjustments for multi-white and RGB lights. It features four output ports with Loox5 4-pin connections and one input port for seamless integration. With a current carrying capacity of 3.00 A and a power rating of 36.00 W, it efficiently meets your lighting needs. Measuring at 150 x 50 x 16 mm, this sleek black plastic unit is designed for unobtrusive placement. It also includes a memory function that retains the last state after power loss for units produced after March 2022. With a standby power consumption of just 0.50 W and a maximum control distance of 5.00 m, the Hafele 850.00.959 distributor is an excellent choice for modern lighting solutions.
4-way distributor (1-channel), Hafele Connect Mesh Eco, 4-port, 12 V
Individual component for extending the set, RGB, 36 W
> Individual Connect Mesh RGB distributor for adding to existing pre-paired sets > Easily paired with remote; no app required > Ideal for smaller installations with up to 4 distributors and 1 remote control
Memory function after power loss = 100% at Red (Memory function for 12 V distributors with production date of 03/2022 or later will be “Remembers last state”.)
Attributes
Area of application: For switching on/off, dimming (0-100%); color temperature change (multi-white) and color change (RGB)
Color system: RGB
Color/finish: Black
Connected output ports: 4 x sockets, Loox5 4-pin RGB 12 V
Connections: 4 x sockets, Loox5 2-pin 12 V box to box
Control channels: 1.00
Current carrying capacity: 3.00 A
Dim. ( L x W x H): 150 x 50 x 16 mm
Distance between controls max.: 5.00 m
Height (inch): 5/8″
Input ports: 1 x plug, Loox5 2-pin 12 V box to box
Length (inch): 4 1/8″
Low voltage plug: Loox5 2-pin 12 V
Material: Plastic
Memory function: No
Number of controls for each installation max.: 4.00
Order reference: Please order Häfele Connect Mesh Eco remote control separately. By default, the remote controls all the lights in the network together.
Power rating: 36.00 W
Standby power consumption: 0.50 W
Suitable for: For RGB lights
Supplied with: 1 Connect Mesh 4-way RGB distributor
Version: 4-port series; for Monochrome, 3-wire Multi-white or RGB LED lights
Voltage: 12.00 V
Width (inch): 2″
Resources
- CAD data
- Declaration of conformity
- EU Declaration of conformity
- Hafele_Lighting_ 2024 | Page 104
- Hafele_Lighting_ 2024 | Page 246
- Installation instructions for Eco Mesh Boxes
- Loox – Electrical Code Compliance
