NGP 136N 36″ Mill Aluminum NGP-TPV Door Bottom Seal Mortised Astragal
NGP 136N 36″ Mill Aluminum NGP-TPV Door Bottom Seal or Mortised Astragal is designed to enhance the durability and functionality of your commercial restroom partitions. Constructed from high-quality aluminum alloy 6063 with a T5 temper, this door bottom seal combines strength with a sleek appearance. The innovative Thermo-Plastic Vulcanizate (TPV) material offers exceptional abrasion resistance, tensile strength, and memory, ensuring a reliable seal that withstands daily wear and tear. This door bottom seal is flame and moisture resistant, making it suitable for a variety of environments. With a temperature range of -81°F to 275°F, it remains effective in extreme conditions. Additionally, the product is BHMA certified to ANSI/BHMA A156.22 performance tests for heat and cold, guaranteeing its reliability and effectiveness. The NGP-TPV is offered in a striking black color, seamlessly complementing the mill aluminum finish. It is designed for mortising at a width of 7/16″ and can be adjusted to the desired depth, providing versatility for installation. Fasteners are included (#2 SMS), making installation straightforward. With good resistance to ozone, sunlight, and aging, the NGP 136N ensures long-lasting performance in demanding settings.
36″ Mill Aluminum NGP-TPV Door Bottom Seal or Mortised Astragal
- Mill aluminum
- Temperature range -81°F to 275°F
- #2 SMS furnished
- Flame resistant

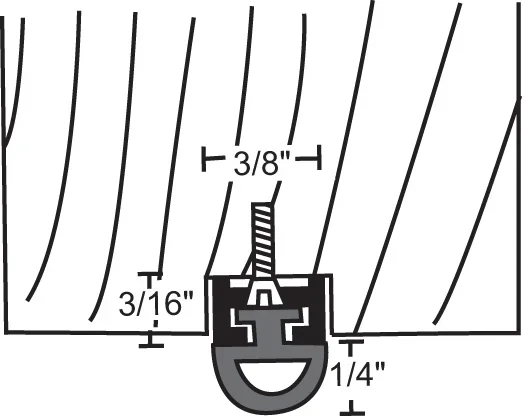

- Mortise 7/16″ wide x desired depth
- Thermo-Plastic Vulcanizate (TPV)
- Moisture resistant
- BHMA Certified to ANSI/BHMA A156.22 performance tests for heat and cold
- Good resistance to ozone, sunlight and aging
- NGP-TPV is black
- Aluminum alloy 6063, T5 temper
- Very good abrasion resistance, tensile strength and memory
Attributes
Application: Mortise 7/16″ wide x desired depth
BHMA: BHMA Certified to ANSI/BHMA A156.22 performance tests for heat and cold
Color: NGP-TPV is black
Fasteners: #2 SMS furnished
Fire Rated: Flame resistant
Length: 36.0″
Material: Mill aluminum
Moisture Resistant: YES
Resistance: Good resistance to ozone, sunlight and aging
Standard-0: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-1: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature range -81°F to 275°F
