36″ Fire Door Top Gap Solution Up To 90 Minutes – NGP Weatherstripping

Description

NGP 9990 36″ Fire Door Top Gap Solution, Up to 90 Min. Fire Rating

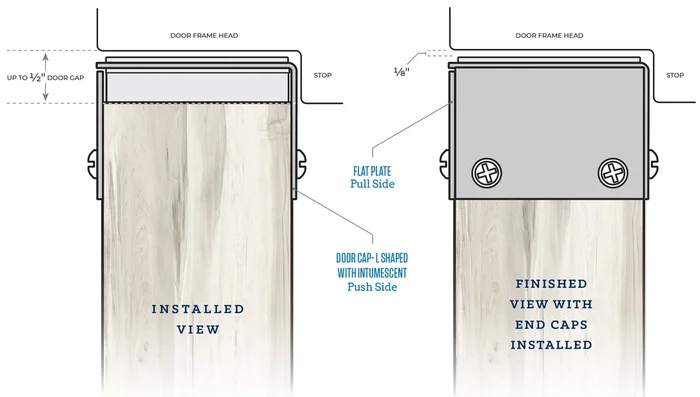

NGP 9990 36″ Fire Door Top Gap Solution offers an innovative approach to managing excessive door top clearances measuring up to 1/2″. This UL Certified solution is designed for use on UL10B and UL10C rated wood or hollow metal fire doors, ensuring compliance with stringent safety standards for up to 90 minutes.Crafted from #304 brushed stainless steel, the product features a flat plate for the pull side and an intumescent cap for the push side, providing durability and a sleek finish. The NGP 9990 comes equipped with standard end caps and is non-handed, making it versatile for various installations.One of the standout benefits is that there’s no need to relocate existing hardware at the top of the door, simplifying the installation process. It works seamlessly with doors fitted with parallel arm closers, ensuring functionality without compromising aesthetics.Available in both 36″ and 48″ lengths, this solution is certified for use in the US and Canada, making it an ideal choice for commercial restroom applications. The NGP 9990 ensures that safety and design go hand in hand, meeting the needs of building professionals and knowledgeable homeowners alike.

36″ Fire Door Top Gap SolutionUp To 90 Minutes

• No Need to Move Hardware at the Top of the Door
• Certified for use in US and Canada
• Finish: Brushed Stainless Steel
• Available in 36″ and 48″ Lengths
• Non-Handed
• Patented: US Patent US 11,261,653 B2
• UL Certified for Door Top Gaps— Measuring up to 1/2″
• Brushed Stainless Steel
• End Caps Furnished Standard
• 90-Minute Rated— for Use on UL10B and UL10C Wood or Hollow Metal Fire Doors
• Works on Doors with Parallel Arm Closers
• Product consists of: #304 Brushed Stainless Steel, Flat Plate – Pull Side, #304 Brushed Stainless Steel, Intumescent Cap— Push Side, #304 Brushed Stainless Steel End Caps, #6 x 3/4″ Stainless Steel SMS Furnished

Attributes

Certifications: Certified for use in US and Canada

Finish: Finish: Brushed Stainless Steel

Fire Rated: 90-Minute Rated— for Use on UL10B and UL10C Wood or Hollow Metal Fire Doors

Handing: Non-Handed

Length: Available in 36″ and 48″ Lengths

Patented: Patented: US Patent US 11,261,653 B2

Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 90 minute with excessive door top clearances measuring up to 1/2″

Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 90 minute with excessive door top clearances measuring up to 1/2″

UL Certified: UL Certified for Door Top Gaps— Measuring up to 1/2″
