36″ DKB-finish Aluminum Spring Adjustable Neoprene Perimeter Seal – NGP

Description

NGP 303NDKB 36″ DKB Aluminum Spring Adjustable Neoprene Perimeter Seal

NGP 303NDKB 36″ DKB-finish Aluminum Spring Adjustable Neoprene Perimeter Seal is engineered for durability and optimal performance in commercial restroom applications. Crafted from high-quality Aluminum Alloy 6063 with a T5 temper, this perimeter seal combines strength with flexibility. Its synthetic EPDM rubber encased in a polypropylene thermoplastic matrix ensures excellent abrasion resistance and memory, making it a reliable choice for high-traffic areas. This product is flame-resistant and moisture-resistant, making it suitable for a variety of environments. The temperature range of -81°F to 275°F guarantees its effectiveness in diverse conditions. Additionally, it boasts good resistance to ozone, sunlight, and aging, ensuring longevity. Designed for easy installation, the adjustment screws set on 10″ centers allow for quick adjustments without repositioning the mounting location. The spring-loaded mechanism maintains pressure for the most effective seal, enhancing energy efficiency and comfort. The NGP 303NDKB is BHMA certified to ANSI/BHMA A156.22 performance tests, ensuring it meets rigorous industry standards. With a sleek dark bronze finish and a black color, this perimeter seal not only performs well but also complements the aesthetics of modern restroom designs. Suitable fasteners, including #6 x 3/4″ or #6 x 1-1/2″ stainless steel SMS, are furnished for added convenience.

36″ DKB-finish Aluminum Spring Adjustable Neoprene Perimeter Seal

• Very Good Abrasion Resistance, Tensile Strength and Memory
• Flame-Resistant
• Aluminum Alloy 6063, T5 Temper
• Moisture-Resistant
• Good Resistance to Ozone, Sunlight and Aging
• Synthetic EPDM Rubber in Polypropylene Thermoplastic Matrix Closed Cell Advanced Elastomeric Foam
• Temperature Range -81°F to 275°F
• Dark Bronze Finish
• Spring-Loaded to Maintain Pressure for the Most Effective Seal
• Color is Black
• BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
• #6 x 3/4″ or #6 x 1-1/2″ Stainless Steel SMS Furnished

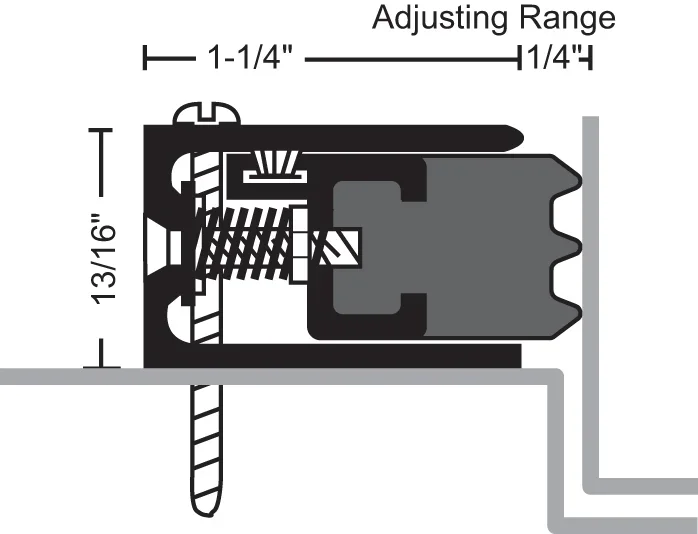

• Adjustment Screws on 10″ Centers Allow Adjustment without Re-Positioning Mounting Location

Attributes

BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold

Color: Color is Black

Fasteners: #6 x 3/4″ or #6 x 1-1/2″ Stainless Steel SMS Furnished

Finish: Dark Bronze Finish

Fire Rated: Flame-Resistant

Length: 36.0″

Material: Aluminum Alloy 6063, T5 Temper

Moisture Resistant: YES

Resistance: Good Resistance to Ozone, Sunlight and Aging

Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.

Standard-3: ACOUSTICAL TESTED to ASTM E90 Standard Test Method for Laboratory Measurement of Airborne Sound Transmission Loss of Building Partitions and Elements, and ASTM E2235 Standard Test Method for Determination of Decay Rates for use in Sound Insulation Test Methods. Refer to information on pages G8 thru G10 of our Gasketing catalog for test result data.

Standard-4: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.

Standard-5: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.

Temperature Range: Temperature Range -81°F to 275°F
