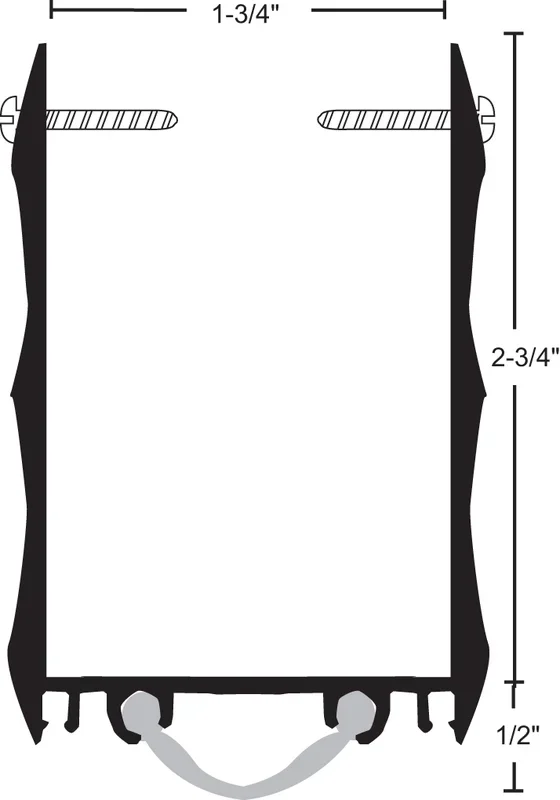

36″ DKB-finish Aluminum Extended Door Shoe with Vinyl Insert by NGP

Description

NGP 99VDKB 36 National Guard Products Weatherstrip

EXTENDED DOOR SHOE VNYL 3 FOOT LENGH, DARK BRONZE

• Thermoplastic polymer: Polyvinyl Chloride (PVC) formulated with an environmentally friendly Bio-based plasticizer
• Oxidative degradation from age and exposure to cold, heat and UV causes hardening, loss of memory and resilience, cracking, crazing and discoloration
• Flame resistant
• Temperature range 0°F to 140°F
• Moisture resistant
• Vinyl is black
• #6 x 3/4″ stainless steel SMS furnished
• Aluminum alloy 6063, T5 temper
• Economical
• End caps available – sold separately
• Dark bronze finish

Attributes

Color: Vinyl is black

Fasteners: #6 x 3/4″ stainless steel SMS furnished

Finish: Dark bronze finish

Finish : Dark Bronze

Fire Rated: Flame resistant

Length: 36.0″

Material: Thermoplastic polymer: Polyvinyl Chloride (PVC) formulated with an environmentally friendly Bio-based plasticizer

Moisture Resistant: YES

Series: NGP Gasketing

Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.

Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.

Subtype: Weatherstrip

Temperature Range: Temperature range 0°F to 140°F

Type: Hinges and Pivots
