36″ Architectural Bronze Half Saddle Threshold – NGP

Description

NGP 315BR 36″ Architectural Bronze Half Saddle Threshold, 1/4″ x 3″

NGP 315BR 36″ Architectural Bronze Half Saddle Threshold combines aesthetic appeal with functional design, making it an ideal choice for commercial restroom installations. Crafted from Alloy CDA 385, this threshold features a durable construction that ensures longevity while providing a sleek look with its Architectural Bronze satin finish, similar to US4. With dimensions of 3″ in width and 1/4″ in height, it accommodates various floor transitions smoothly. The fluted top design not only enhances its visual appeal but also provides traction, ensuring safety in high-traffic areas. Importantly, the NGP 315BR is ADA compliant when installed with the non-beveled edge flush with the flooring or where no greater than a 1/4″ vertical rise occurs, facilitating accessibility for all users. Each threshold comes with #10 X 1-1/2″ brass wood screws, featuring an antique bronze finish that seamlessly matches the threshold. Weighing 1.56 lbs./ft. and designed with a typical wall thickness of .157″, this threshold is robust yet manageable for installation. Certified by UL for fire door applications, it meets rigorous safety standards, making it a reliable choice for both new constructions and renovations. Upgrade your restroom’s functionality and style with the NGP 315BR Half Saddle Threshold.

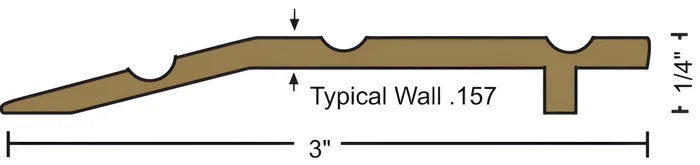

36″ Architectural Bronze Half Saddle Threshold, 1/4″ x 3″

• Fluted top
• 3″ width x 1/4″ tall
• ADA Compliant when installed with the non-beveled edge flush with flooring, or where no greater than 1/4″ vertical rise occurs
• Weight: 1.56 lbs./ft.
• Typical wall thickness .157″
• Architectural Bronze satin finish (728) similar to US4
• Alloy CDA 385 (Copper Alloy No. C38500)
• #10 X 1-1/2″ brass wood screws included. Antique bronze finish screws provided with dark bronze threshold

Attributes

ADA: ADA Compliant when installed with the non-beveled edge flush with flooring, or where no greater than 1/4″ vertical rise occurs

Dimensions: 3″ width x 1/4″ tall

Finish: Architectural Bronze satin finish (728) similar to US4

Length: 36.0″

Material: Alloy CDA 385 (Copper Alloy No. C38500)

Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.

Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-2: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Wall Thickness: Typical wall thickness .157″

Weight: Weight: 1.56 lbs./ft.
