36″ Anodized Aluminum Polyurethane Perimeter Seal – NGP Weatherstripping

Description

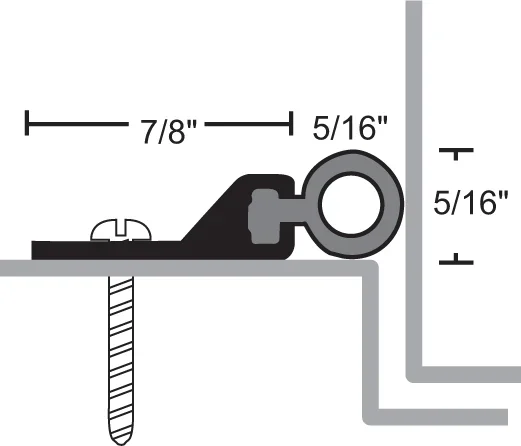

NGP 161UA 36″ Anodized Aluminum Polyurethane Perimeter Seal

NGP 161UA 36″ Anodized Aluminum Polyurethane Perimeter Seal delivers exceptional performance and durability for commercial restroom partitions. Crafted from Aluminum Alloy 6063 with T5 temper, this perimeter seal ensures very good abrasion resistance, tensile strength, and UV resistance, making it ideal for high-traffic environments. Designed for a temperature range of -80°F to 200°F, the NGP 161UA is both flame-resistant and moisture-resistant, providing reliable protection in various conditions. The black polyurethane material enhances its durability while maintaining an aesthetically pleasing appearance. Installation is straightforward, thanks to the #6 x 3/4″ stainless steel sheet metal screws that are furnished and slotted screw holes for easy adjustment. Certified by UL to meet stringent safety standards, this perimeter seal complies with NFPA 80 and NFPA 252 for application to hollow metal and wood fire doors, rated up to 3 hours and 90 minutes, respectively. Additionally, it has passed air infiltration tests to ASTM E283, ensuring superior air leakage control. With its robust construction and versatile features, the NGP 161UA perimeter seal is an excellent choice for those seeking a reliable and effective solution for restroom partition hardware.

36″ Anodized Aluminum Polyurethane Perimeter Seal

• Temperature Range -80°F to 200°F
• Flame-Resistant
• Polyurethane is Black
• Aluminum Alloy 6063, T5 Temper
• Moisture-Resistant
• .07 Aluminum for Military Specs
• Anodized Aluminum
• #6 x 3/4″ Stainless Steel Sheet Metal Screws Furnished
• Very Good Abrasion Resistance, Tensile Strength, Memory and UV Resistance
• Screw Holes Slotted for Adjustment

Attributes

Color: Polyurethane is Black

Fasteners: #6 x 3/4″ Stainless Steel Sheet Metal Screws Furnished

Finish: Anodized Aluminum

Fire Rated: Flame-Resistant

Length: 36.0″

Material: Aluminum Alloy 6063, T5 Temper

Moisture Resistant: YES

Resistance: Very Good Abrasion Resistance, Tensile Strength, Memory and UV Resistance

Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.

Temperature Range: Temperature Range -80°F to 200°F
