Description

NGP 513HD36 National Guard Products Threshold

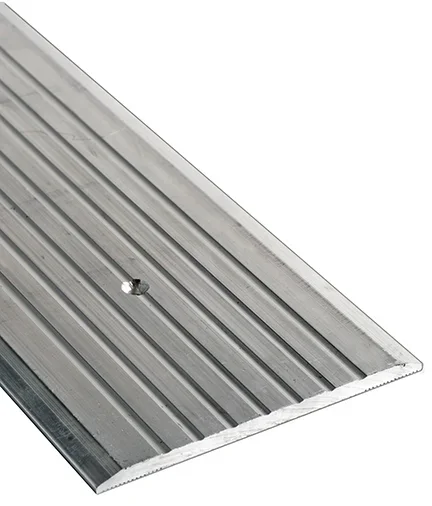

National Guard Products 513HD36 5″ x 1/4″ x 36″ Heavy Duty Saddle Threshold Clear Anodized Aluminum Finish

• #10 x 1-1/2″ FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
• Mill finish
• Fluted top
• 5″ wide x 1/4″ tall
• Recommended for delivery/storage doorways where heavier loads travel
• Aluminum alloy 6063, T5 temper
• For use where forklift or vehicular traffic occurs
• Weight: 1.4 lbs./ft.

Attributes

Accessible: Yes

Ada Compliance: Yes

Commercial Residential: Commercial

Dimensions: 5″ wide x 1/4″ tall

Fasteners: #10 x 1-1/2″ FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds

Finish: Mill finish

Finish : Milled Aluminum

Finish Family: Matte Silver

Fire Rated: 3 Hours

Fire Rating: 3 Hours

Installation: Commercial

Length: 36.0″

Material: Aluminum alloy 6063, T5 temper

Pack Qty: 1

Series: Threshold Series

Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.

Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-2: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 Heavy Duty 10,000 lb. load test and are listed in the BHMA Certified Products Directory.

Subtype: Thresholds

Type: Weatherization

Ul Listing: UL10C

Unit of Measure: Each

Weight: Weight: 1.4 lbs./ft.
