316 Brushed Stainless Sydney Series Glass-to-Glass Mount Hinge – C.R. Laurence

Description

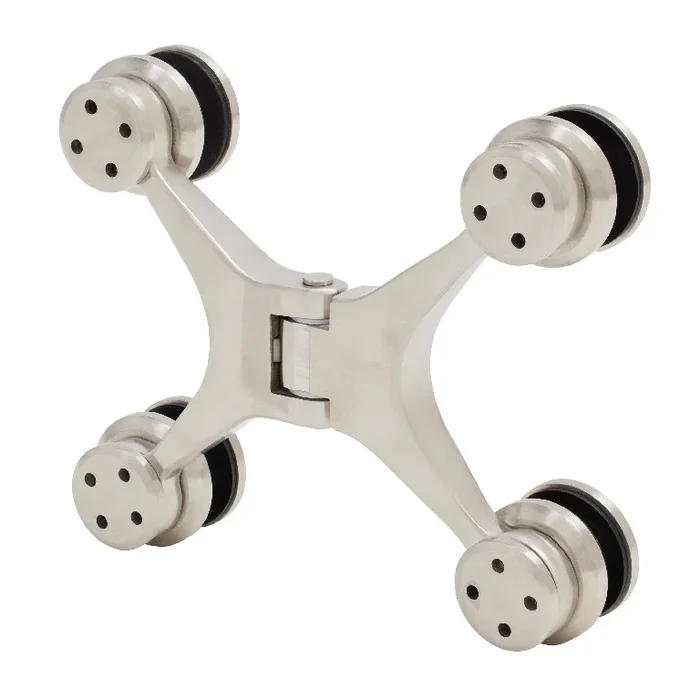

CRL SYD180BS 316 Brushed Stainless Sydney Series Glass-to-Glass Mount Hinge

C.R. Laurence SYD180BS 316 Brushed Stainless Sydney Series Glass-to-Glass Mount Hinge combines modern aesthetics with robust functionality, making it an ideal choice for frameless shower door installations. Designed with a unique Spider Type configuration, this hinge allows for a seamless integration of glass panels, elevating the visual appeal of any bathroom.Constructed from high-quality 316 stainless steel, the SYD180BS hinge ensures durability and resistance to corrosion. It supports glass thicknesses of 5/16″ to 3/8″ (8 to 10 mm) and can accommodate impressive weight capacities-up to 80 lbs. (36 kg) with two hinges and 120 lbs. (54 kg) with three hinges. The hinge swings outward up to 90 degrees and can be set at 90 or 180 degrees for versatile installation options. Installation is straightforward, requiring only two 5/8″ (16 mm) diameter holes per hinge, with no cut-out necessary. The hinge includes gaskets, screws, and fabrication dimensions for added convenience. Available in both brushed and polished finishes, the SYD180BS allows you to customize the look to suit your design vision.Ensure your frameless shower doors operate smoothly and stylishly with the reliable performance of the C.R. Laurence Sydney Series Hinge.

316 Brushed Stainless Sydney Series Glass-to-Glass Mount Hinge

• Opens Up to 90 Degrees Outwards; Settings at 90Degrees or 180 Degrees
• Our Spider Type Design for the Construction of Frameless Showers
• Choice of Two Mounting Options: Glass-to-Glass and Glass-to-Wall
• Use Monolithic Tempered Glass
• Glass-to-Glass Model Has Settings at 90 Degrees or 180 Degrees
• Constructed of 316 Stainless Steel in Your Choice of Brushed or Polished Finish

For a new design in
CRL Frameless Shower Door Hinges, look no further than our Sydney Series. The unique Spider Type design is certain to give the frameless shower door a different look that will surely be noticed. Constructed of durable 316 stainless steel, Sydney Hinges are available in Wall-to-Glass and Glass-to-Glass models. The Glass-to-Glass model offers two settings at 90 degree and 180 degree. For doors falling in between these common installation angles, the springs may be removed to allow a free-swinging hinge.

Two holes are required per hinge for each panel to accommodate the through-bolts, with no cut-out necessary. The 316 stainless steel body of the Sydney Hinge allows the door to swing 90 degree outward. Polished and Brushed Stainless finishes are offered.

Using two hinges with 5/16″ to 3/8″ glass (8 to 10 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28″ (711 mm).

Using three hinges with 5/16″ to 3/8″ glass (8 to 10 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 34″ (864 mm).

SPECIFICATIONS:

Glass Thickness: 5/16″ to 3/8″ (8 to 10 mm) Tempered Safety Glass

Construction: 316 Stainless Steel

Hinge Swings: Up to 90 degree Outwards (Requires Stop)

Closing Type: Precise Closing to 0 degree

Two 5/8″ (16 mm) Diameter Holes required per panel per hinge, no cut-out.

Includes: Gaskets, Screws, and Glass Fabrication Dimensions

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Stainless Steel Advisory:

Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

Attributes

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Finish/ Color:: Brushed Stainless Steel

Glass To Glass Angle: 180

Glazing Thickness: 3/8 in. (10 mm)

Height: 4-1/4 in. (108 mm)

Material: 316 Stainless Steel

Maximum Door Weight – 2 Hinges: 80 lbs. (36.3 kg)

Maximum Door Weight – 3 Hinges: 120 lbs. (54.4 kg)

Maximum Door Width – 2 Hinges: 28

Maximum Door Width – 3 Hinges: 34

Mounting Type: Glass To Glass

Series: Sydney

Shipping Limitations: None

Width: 5 in. (127 mm)

Resources

• CRL Stainless Steel Disclaimer
• Frameless Shower Door Glass and Hardware Cleaning Instructions
• Frameless Shower Door Hardware Catalog
• Frameless Shower Door Quote Request Form
• SYD180 Template
