316 Brushed Stainless L10 Series U-Channel 90 Degree Horizontal Corner for Glass Cap Railing

Description

CRL L10HBS 316 Brushed Stainless L10 U-Channel 90 Corner for 21.52mm Glass Railing

C.R. Laurence L10HBS 316 Brushed Stainless L10 Series U-Channel 90 Degree Horizontal Corner for 21.52 mm Glass Cap Railing offers an elegant solution for creating seamless transitions in your glass railing systems. This pre-fabricated corner piece is designed specifically for 27/32″ (21.52 mm) thick laminated glass, ensuring a precise fit and a sophisticated aesthetic. Crafted from high-quality 316 stainless steel, the L10HBS features a brushed finish that not only enhances its visual appeal but also ensures durability and resistance to corrosion. Each corner is welded, finished, and ready-to-install, eliminating the need for time-consuming field miter cutting and welding, thus streamlining your installation process. To secure the glass effectively, pairing the L10HBS with CRL’s LR21PV Cap Railing Rubber Insert and 95CBL Silicone is essential. This combination guarantees a secure and permanent bond, enhancing the overall safety and stability of your railing system. With a length of 6 inches (152 mm) and a centerline of 5-1/4 inches (133 mm), the L10HBS is engineered for a perfect fit in various applications. For optimal performance and maintenance, periodic care is recommended to preserve its factory finish. Trust C.R. Laurence for top-tier railing solutions that blend functionality with style.

316 Brushed Stainless L10 Series U-Channel 90 Degree Horizontal Corner for 21.52 mm Glass Cap Railing

• Welded and Finished
• Ready-to-Install
• 316 Stainless Alloy

This
CRL 90 Degree Horizontal Corner for 27/32″ (21.52 mm) thick laminated glass allows for hairline joint assemblies with straight lengths of CRL Cap Rail. Use of our LR21PV Cap Railing Rubber Insert and 95CBL Silicone is required to achieve a secure and permanent bond.

CRL’s prefabricated 90 degree and 135 degree Horizontal Laminated U-Channel Cap Railing Corners eliminate time consuming field miter cutting and welding. Each Horizontal Corner is fabricated, finished, and individually packaged. Alloy 316 stainless steel is offered in two architectural finishes.

NOTE: When used with 27/32″ (21.52 mm) glass, our LR21PV Cap Railing Rubber Insert and 95CBL Silicone should be used to secure the glass.

For more information contact CRL Railing Products Technical Sales Department.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Stainless Steel Advisory:

Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

Attributes

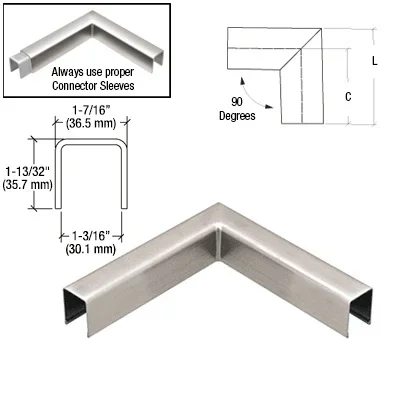

Angle: 90

Centerline: 5-1/4 in. (133 mm)

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Finish/ Color:: Brushed Stainless Steel

Glazing Thickness: 27/32 in. (21 mm)

Length: 6 in. (152 mm)

Material: 316 Stainless Steel

Shipping Limitations: None
