Description

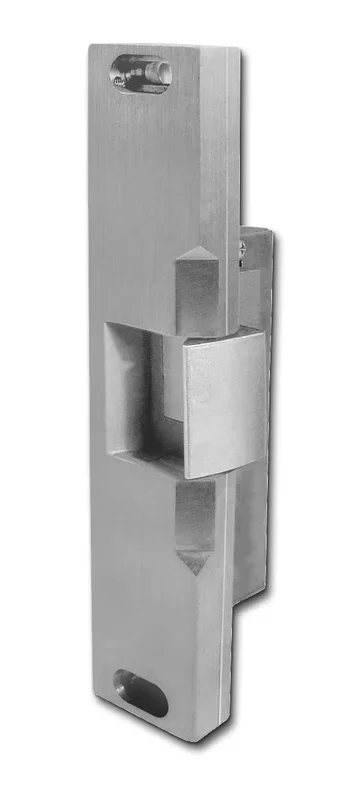

HES 310-4 12D 613E 300 Series Electric Strike
HES 310-4 12D 613E 300 Series Electric Strike is a robust solution designed for high-security environments requiring extreme durability. This Grade 1 Electric Strike is fail secure and operates on 12 VDC, ensuring reliable access control in critical situations. Its dark oxidized bronze finish not only enhances its aesthetic appeal but also provides resilience against corrosion. Constructed entirely from stainless steel, the 310-4 is ideal for heavy-duty applications, capable of withstanding up to 1,500 lbs. of static strength and offering a dynamic strength of 70 ft-lbs. It boasts a unique 3/4″ faceplate with an integrated 1/4″ base shim that allows for easy field adjustments, accommodating rim exit devices with either a 1/2″ or 3/4″ throw latchbolt. This electric strike is UL 10C listed for a 3-hour fire rating, making it suitable for fire door applications, and is compliant with various safety standards, including UL 294 and ANSI/BHMA A156.31. With an endurance rating of 500,000 cycles and features like integrated ramps for improved deadlatch handling, the HES 310-4 Electric Strike is an excellent choice for commercial installations where security, reliability, and performance are paramount. Enjoy peace of mind with a five-year limited warranty, ensuring long-lasting functionality.
300 Series Electric Strike
Grade 1 Electric Strike, Fail Secure, 12 VDC, PK Keeper, Dark Oxidized Bronze Finish
The 310 Series is a 3 hour fire-rated, industrial grade electric strike designed for extreme heavy duty applications. The all stainless steel construction of this device makes it ideal for high abuse applications that would disable other electric strikes.
The 310-4 is a 3 hour fire-rated, industrial electric strike designed for extreme heavy duty applications.
The 310-4 has a unique 3/4″ face plate with an integraded 1/4″ base shim that can be removed in the field to accommodate rim exit devices with a 1/2″ or 3/4″ throw latchbolt.
- UL 10C, 3 hour fire-rated (fail secure only)
- CAN4-S104 (ULC-S104) fire door conformant
- UL1034, burglary-resistant listed
- UL 294 (6th Edition) listed
- ANSI/BHMA A156.31, Grade 1
- NFPA-252 fire door conformant
- ASTM-E152 fire door conformant
- .51 Amps @ 12VDC continuous duty
- .25 Amps @ 24VDC continuous duty
- Integrated shim for quick customization of faceplate thickness (1/2″ to 3/4″)
- Tamper resistant, heavy-duty construction
- Constructed entirely of stainless steel for strengthand corrosion resistance
- Static strength 1,500 lbs.
- Dynamic strength 70 ft-lbs.
- Endurance rating 500,000 cycles
- Integrated ramps for better deadlatch handling
- Set screws for horizontal lockdown
- In-frame horizontal adjustability
- Wider faceplate (1-3/4”) for greater versatility
- Non-handed
- Fail Secure (standard)
- Plug-in connector
- Five year limited warranty
- Fail Safe
- LCBMA – Latchbolt & Locking Cam Monitor with Auxiliary Switch
Attributes
Amp Draw: .51 @ 12V .25 @ 24V
Application: Rim Panic Device with Pullman Latch
Baa Qualified: Yes
Base Material: Bronze
Commercial Residential: Commercial
Configuration: Centered
Country of origin: USA
Faceplate Size: 9″ x 1-1/2″
Finish: 613/US10B
Finish Family: Dark Bronze
Fire Rated: Yes
Fire Rating: 3 Hours {A}
For Use With: Rim Exit Devices
Frame Application: Metal or Wood
Function: Fail Secure
Grade: Grade 1
Holding Force: 1500 lbs.
Installation: Commercial
Keeper Size: PK Keeper
Limited Warranty: 5 Years
Operating Voltage: 12 VDC
Origin: USA
Pack Height: 2.5″
Pack Length: 12.25″
Pack Qty: 1
Pack Volume: 183.75 in³
Pack Width: 6″
Series: 310-4 Series Electric Strikes
Ship Weight: 3.6 lbs.
Subtype: Electric Strikes
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
Resources
- 310-4 Series Electric Strikes Cut Sheet
- AA ESH Electric Strike Overview
- Electric Strike Selector Guide
