Description

NGP RCE-30DKB 30″ DKB Return Closed End for Ramps

NGP RCE-30DKB 30″ DKB-finish Return Closed End for Ramps is an essential component for ensuring accessibility and compliance in commercial spaces. Crafted from durable cast aluminum, this return closed end features a sophisticated dark bronze finish that seamlessly integrates with various architectural styles while offering robust support. Designed with ADA compliance in mind, the RCE-30DKB meets the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1, making it an ideal choice for barrier-free environments. The product includes a 21″ wide section alongside a 12″ wide extension, providing versatility for different ramp configurations. Additionally, this product is certified by UL to various standards, ensuring reliability and safety. It is compliant with NFPA 80 and NFPA 252 for use with hollow metal fire doors rated up to 3 hours and wood fire doors rated up to 90 minutes. The RCE-30DKB also meets ANSI/BHMA certification, confirming its strength with a 1,000 lb. load test. With the added convenience of UPS shipping, the NGP RCE-30DKB is a smart investment for building professionals and homeowners who prioritize safety, compliance, and aesthetic appeal in their projects.

30″ DKB-finish Return Closed End for Ramps

• Cast aluminum

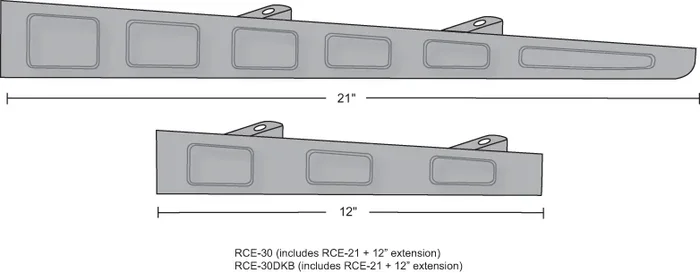

• Includes RCE 21″ wide + 12″ wide extension
• Dark bronze finish

Attributes

Finish: Dark bronze finish

Material: Cast aluminum

Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.

Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-2: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
