3 Hour Fire Rated 3′ Exit Only Rim Exit Device 689 Aluminum Finish – ASSA Abloy Accentra

Description

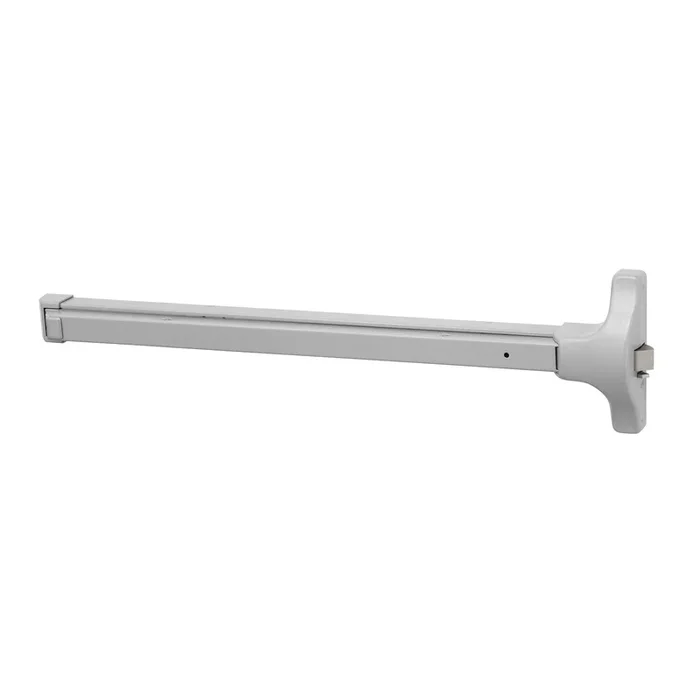

Accentra 2100F36689 3-Hour Fire Rated 3′ Rim Exit Device, Aluminum Finish

ASSA Abloy Accentra 2100F36689 3 Hour Fire Rated 3′ Exit Only Rim Exit Device offers a robust solution for emergency egress in commercial and institutional settings. This rim exit device is designed with the Accentra Free Wheeling Lever Mechanism, ensuring smooth operation under high-traffic conditions. It meets ANSI/BHMA A156.3 Grade 1 standards, providing superior durability and reliability. Certified by UL for use on fire doors with a rating of up to 3 hours, the 2100F36689 is an essential component for enhancing safety in any facility. The device features a sleek aluminum finish (Code 689), making it not only functional but also aesthetically pleasing. With a device length of 32-3/8 inches and a bar width of 2-1/8 inches, it fits doors ranging from 30 to 36 inches wide, accommodating standard door thicknesses of 1-3/4 inches. Manufactured under a certified ISO 9001 Quality System, this exit device is backed by a limited 3-year warranty, underscoring its reliability and quality. Designed for easy installation and maintenance, the ASSA Abloy Accentra 2100F36689 is the ideal choice for ensuring safe and efficient exits in various building environments.

3 Hour Fire Rated 3′ Exit Only Rim Exit Device 689 Aluminum Finish

ASSA ABLOY ACCENTRA provides a comprehensive range of high-performance door hardware and streamlined digital access control solutions for commercial, institutional, and multi-resident facilities

• ANSI / BHMA A156.3 Grade 1
• Limited 3 Year Warranty
• Features the Accentra Free Wheeling Lever Mechanism
• Designed and Manufactured Under a Certified ISO 9001 Quality System
• UL Listed for Use on Fire Doors Having a Rating Up to 3 Hours

Attributes

Category: Exit Devices

Design: Rim

Device Length: 32-3/8″

Device Type: Rim Device

Dimension: 32-3/8″” Overall Length; 2-1/8″ Bar Width; 2-1/2″ Projection While Extended

Door Thickness: 1-3/4″

Door Width: 30″ to 36″ Doors

Finish: Aluminum

Finish Code: 689

Fire Rated: Yes

Function: Exit Only

Hazardous Material: NO

Includes Cylinder: No

Manufacturer Warranty: Limited 3 Year Warranty

Material: Aluminum

Minimum Stile Size: 4-1/2″

No Of Inners: 1

Order_ Qty: 1

Series: 2100 Series

Subcategory: Rim Exit Devices

Ul Listing Type: UL/cUL Listed
