Description
Ives 7212SET US26D LH 3/4in Offset Pivot Set LH, Top Door Bottom Jamb Mount, Satin Chrome
Ives 7212SET US26D LH 3/4in Offset Pivot Set is an essential component for any door installation requiring precision and durability. Designed for left-hand applications, this pivot set combines high-strength brass and stainless steel materials to ensure maximum corrosion resistance, making it ideal for both fire-rated and non-rated doors. With a maximum door load capacity of 200 pounds, it is recommended for doors with a minimum thickness of 1-3/4 inches and a 1/8-inch bevel. The vertical adjustment mechanism provides a range of 3/16 inches, allowing for precise positioning and load balancing during installation. Each set includes both a top and bottom pivot, ensuring seamless operation. The 7212 Top pivot is designed for header mount, while the 7212 Bottom pivot mounts directly to the jamb, offering flexibility in installation. This pivot set meets ANSI/BHMA A156.4 C07131 standards and is UL 10C Listed for 20 minutes, ensuring compliance with safety regulations. Available in a sleek satin chrome finish, the Ives 7212SET enhances both the functionality and aesthetics of your door hardware. Whether you’re a building professional or a knowledgeable homeowner, this pivot set is a reliable choice for your door systems.
3/4in Offset Pivot Set LH Left Hand, Top Door, Bottom Jamb Mount, 626/US26D Satin Chrome
Notice: The info below is not item specific.
Ives offers a complete line of 3/4″ offset, 1-1/2″ offset, center hung, intermediate, pocket and power transfer pivots with all exposed parts made of brass or stainless steel for maximum corrosion resistance. The offerings include high strength brass and stainless steel forgings, as well as castings for fire-rated and non-rated doors, combined with precision bearings for smooth operation. The positive locking vertical adjustment mechanism allows the installer to precisely position the door and balance the load.
Features:
- Maximum door load 200 pounds
- Recommended for use with 1 3⁄4″ minimum door thickness, with 1⁄8″ bevel in 2″
- Vertical adjustment range 3⁄16″, with positive locking
- Handed LH or RH

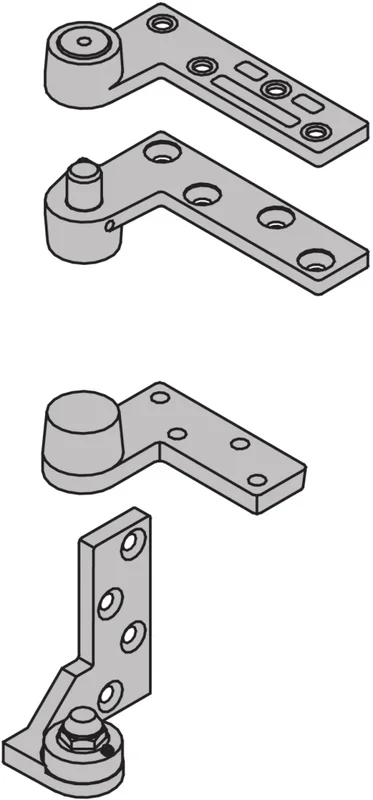

- 7212 Set (7212 Top and 7212 Btm)
- 7212 Top (7212-7215-7222-7226-7227 Top), header mount
- 7212 Btm (7212 Btm), jamb mount
- Certifications:
- Meets ANSI/BHMA A156.4 C07131
- UL 10C Listed (20 min)
- Material Substrate: Made from cast brass
Finishes:
- 605/US3 – Bright Brass
- 606/US4 – Satin Brass
- 612/US10 – Satin Bronze
- 613/US10B – Oil Rubbed Bronze
- 619/US15 – Satin Nickel
- 622/BLK – Matte Black
- 625/US26 – Bright Chrome
- 626/US26D – Satin Chrome
- 643e/716 – Aged Bronze
- 689/SP28 – Aluminum Painted
- 691/SP10 – Bronze Painted
- 695/SP313/US10BE – Dark Bronze Painted
- 706/SP4 – Brass Painted
Attributes
Alternate Codes: 7212SET626 LH, 7212SET US26D LH, 7212SET-US26D LH, 7212SETUS26DLH, IVE7212SET626 LH, IVE7212SET-US26D LH
Category: Hinges, Pivots
Door Thickness: 1-3/4″ Min.
Finish Color: Satin Chrome
Handing: Left Hand
Hinge Rating: 200 lbs
Hinge Style: Offset Pivot
Hinge Type: Pivot Hinge
Offset: 3/4″
