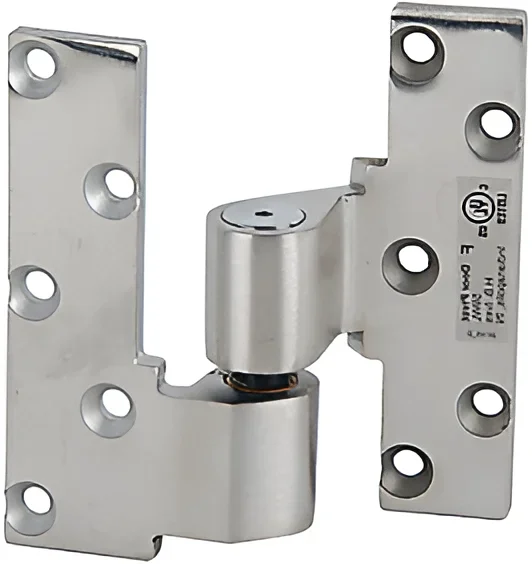

3/4in Offset Intermediate Pivot RH Right Hand, 5in High, Satin Chrome – Ives

Description

Ives 7226INT US26D RH 3/4in Offset Intermediate Pivot RH Right Hand, 5in High, 626/US26D Satin Chrome

Ives 7226INT US26D RH 3/4in Offset Intermediate Pivot RH Right Hand is expertly designed for reliable performance in both fire-rated and non-rated door applications. Crafted from high-strength cast brass, this pivot ensures maximum durability and corrosion resistance, making it an ideal choice for various environments. With a height of 5 inches and a 3/4-inch offset, this intermediate pivot accommodates door heights over 7 feet, providing essential support when spaced every 2 feet as needed. The innovative positive locking vertical adjustment mechanism allows for precise positioning and load balancing, ensuring smooth operation and longevity. Certified to meet ANSI/BHMA A156.4 C07321 standards and UL10C Listed for 20 minutes, the Ives 7226INT guarantees compliance with industry regulations. This pivot is handed for right-hand applications, and it is recommended for doors with a minimum thickness of 1 3/4 inches, featuring a 1/8-inch bevel. Choose from a variety of finishes, including the sleek Satin Chrome, to match your aesthetic needs. Whether for residential or commercial use, the Ives 7226INT provides a robust solution for all your pivoting requirements.

3/4in Offset Intermediate Pivot RH Right Hand, 5in High, 626/US26D Satin Chrome

Notice: The info below is not item specific.

Ives offers a complete line of 3/4″ offset, 1-1/2″ offset, center hung, intermediate, pocket and power transfer pivots with all exposed parts made of brass or stainless steel for maximum corrosion resistance. The offerings include high strength brass and stainless steel forgings, as well as castings for fire-rated and non-rated doors, combined with precision bearings for smooth operation. The positive locking vertical adjustment mechanism allows the installer to precisely position the door and balance the load.

Features:

• 3/4″ Offset intermediate pivot (fire and non-fire rated models)
• NFPA 80, Section 3-3.8 requires intermediate pivot on some fire door applications
• Use for door heights over 7’0″ and one every 2’6″ as needed.
• 7215-7226-7227 intermediate pivot is used with 7215, 7226, and 7227 offset pivots
• Use for door weight over the pivot set limit. Use one additional pivot for every additional 100 pounds
• Recommended for use with 1 3⁄4″ minimum door thickness, with 1⁄8″ bevel in 2″
• Handed LH or RH
• Certifications:
• Meets ANSI/BHMA A156.4 C07321
• UL10C Listed (20 min)
• Material Substrate: Made from cast brass

Finishes:

• 605/US3 – Bright Brass
• 606/US4 – Satin Brass
• 612/US10 – Satin Bronze
• 613/US10B – Oil Rubbed Bronze
• 619/US15 – Satin Nickel
• 622/BLK – Matte Black
• 625/US26 – Bright Chrome
• 626/US26D – Satin Chrome
• 643e/716 – Aged Bronze
• 689/SP28 – Aluminum Painted
• 691/SP10 – Bronze Painted
• 695/SP313/US10BE – Dark Bronze Painted
• 706/SP4 – Brass Painted

Attributes

Alternate Codes: 7215INT626 RH, 7215INTRH US26D, 7226INT26DRH, 7226INT US26D RH, 7226INT-US26D RH, 7226INTUS26DRH, IVE7215INT626 RH, IVE7215INTRH US26D, IVE7226 INT 26D, IVE7226INT26DLHR, IVE7226INT26DRH, IVE7226INT626, IVE7226INT626RH, IVE7226 INT RH 26D, IVE7226INT-RH-2

Category: Hinges, Pivots

Finish Color: Satin Chrome

Handing: Right Hand

Hinge Rating: 600 lbs

Hinge Style: Intermediate

Hinge Type: Pivot

Offset: 3/4″
