2100 Series Rim Exit Device by Yale – Reliable Door Security

Description

Yale 2100F-48 689 2100 Series Rim Exit Device Instructions

Yale 2100F-48 689 2100 Series Rim Exit Device is a robust solution designed for wide stile doors, ensuring reliable performance in high-traffic areas. This Grade 1 rim exit bar is fire-rated for up to 3 hours, complying with stringent safety standards while providing easy access in emergencies. The device features a sleek aluminum painted finish, available in both traditional and attractive satin stainless steel options, making it suitable for environments where aesthetics matter. Engineered with the unique Yale SquareBolt rim latch, this exit device meets the demands of tough applications while enhancing security. The free-wheeling lever mechanism allows the lever to rotate freely even when locked, preventing vandalism and ensuring peace of mind. Additionally, the 2100 Series is windstorm certified, adhering to local codes for added safety. With a focus on quality, the Yale 2100F-48 is designed and manufactured under an ISO 9001 certified system, backed by a one-year warranty for the device and a five-year warranty for trims. The option for a MicroShield® antimicrobial coating further enhances hygiene by inhibiting the growth of bacteria and other harmful microorganisms, making it an ideal choice for commercial environments.

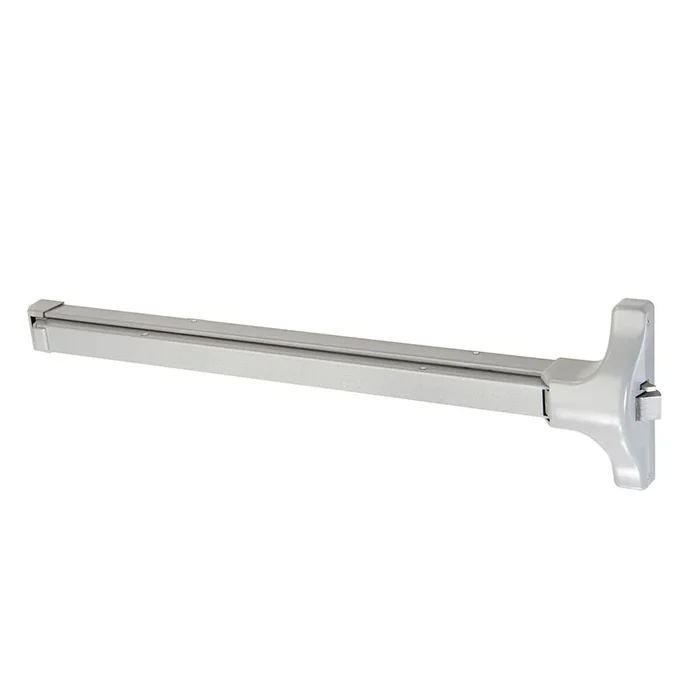

2100 Series Rim Exit Device

Grade 1 Rim Exit Bar for Wide Stile Doors, Narrow Stile Pushpad, 48″ Fire-Rated Device, Exit Only, Less Dogging, Aluminum Painted, Non-Handed

Providing a higher standard of ANSI/BHMA Grade 1 performance, the 2100 Series Exit Device is the right choice for meeting the rigors of everyday use. This economy exit device is now available with the Yale SquareBolt rim latch for the toughest applications. In addition to traditional painted finishes, the 2100 Series is available in an attractive satin stainless steel finish for use where aesthetics are also important.

Economy exit device is now available with the Yale SquareBolt® rim latch for the toughest applications.

Windstorm certified and is also available in satin stainless steel when aesthetics matters.

• Available in rim, SquareBolt®, surface vertical rod and concealed vertical rod configurations
• Certified ANSI/BHMA A156.3, Grade 1
• UL/cUL Listed for use on fire doors having a rating up to and including 3-hours unless otherwise noted
• Featuring unique Free Wheeling lever mechanism that allows the lever to rotate freely even when securely locked, increasing security and preventing vandalism
• Windstorm certified (refer to local codes). Specify suffix “WS” to 2100(F) devices.
• ISO 9001: Designed and manufactured under a certified ISO 9001 quality system
• Warranty: 2100 exit devices are protected by a one-year warranty. Trims have a five-year warranty.
• Available with MicroShield® antimicrobial coating, a revolutionary hardware finish coating which inhibits the growth of bacteria, algae, yeast fungus, mold and mildew

Attributes

Commercial Residential: Commercial

Device Length: 48″

Device Type: Rim

Finish: 689/US28

Finish Family: Matte Silver

Fire Rated: Yes

Fire Rating: Variable

Includes Trim: No

Installation: Commercial

Pack Qty: 1

Physical Appearance: Wide Stile Pushpad

Series: Yale 2100 Series Exit Devices

Subtype: Rim Exit Devices

Type: Exit Devices

Unit of Measure: Each

Resources

• 2023 Yale Commercial Price Book (effective 4.17.2023)
• 2100 Series Flatbar Exit Device Catalog
• 2100, 2150 SquareBolt, and 1800 Rim Exit Device Installation Instructions
• 2110, 2170, 1810 Surface Vertical Rod Exit Device Installation Instructions
• Exit Devices with Electric Dogging (G) and/or Monitors
• Exit Devices with Electric Latch Retraction (P) and/or Monitors
• Yale 2100 Series Exit Devices Cut Sheet
• Yale Commercial Finishes Chart
