Description

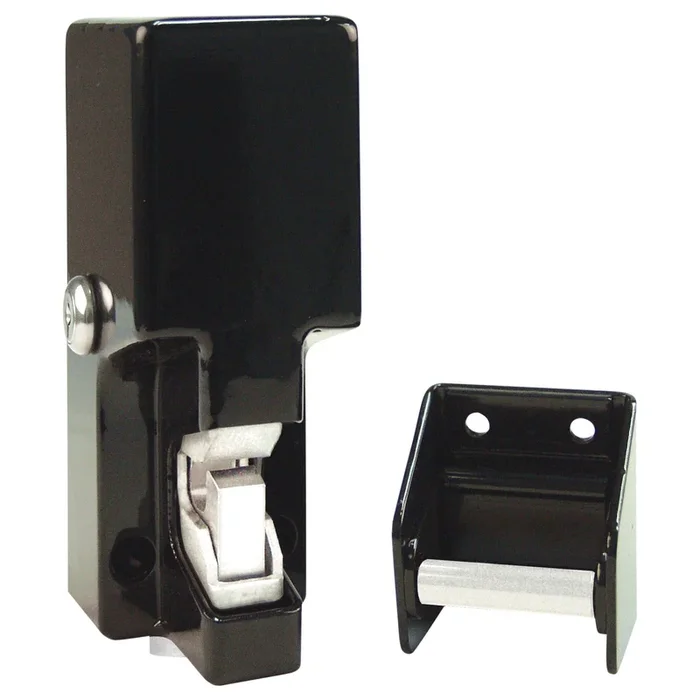

Securitron GL1-FSM Electric Deadbolt
The heavy duty GL1 Electromechanical Gate Lock provides weather-resistant access control for a wide range of gate applications. The GL1 provides 2,000 lbs of holding force for electrical and manually operated indoor or outdoor gates where preload is a concern. Ideal for swinging or sliding vehicle, pedestrian, or stock gate access control. 2,000 lbs holding force, operates under preload up to 100 lbs. Automatic dual-voltage, no field adjustment required. Accepts a standard mortise cylinder with Adams Rite MS cam for manual key override, cylinder not included. Self-aligning receiver (+/- 1/2″horizontally) helps compensate for gate misalignment and sag. Tamper resistant cast housing. Optional latch status monitor.Surface mount. Operating temperature -58 to +167F [-50 to +75C] Indoor or outdoor use. Use flex mount kit for fast profesional installation.
Attributes
Alternate Codes: GL1-FSM, GL1FSM
Baa Qualified: Yes
Base Material: Aluminum / Steel
Burglar Rated: No
Category: Access Control, Gate Maglocks, Maglocks, Single Maglocks
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: USA
Current 12v DC (m A): 870
Current 24v DC (m A): 720
Depth (in): 3.25
Fail Safe | Fail Secure: Fail Safe
Finish: Black
Finish : Applied
Finish Family: Black
Fire Rated: No
Fire Rating: No
Height (in): 2.75
Holding Force (lbs): 2000
Installation: Commercial
Limited Warranty: Lifetime
Maximum Operating Temperature ( F): 167
Minimum Operating Temperature ( F): -58
Monitoring Options: Lock Monitor
Origin: USA
Pack Qty: 1
Product Height: 3.19″
Product Length: 7.25″
Product Width: 2.69″
Restrictions: None
Series: Securitron Specialty Magnalocks
Ship Weight: 6 lbs.
Subtype: Electric Deadbolt
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
Voltage: 12/24 VDC
Weather Resistance: Indoor/Outdoor
Width (in): 7.25
Resources
- 2019 ASSA ABLOY Electronic Security Hardware Product Catalog
- 2019 Securitron Price List
- 2019-2020 Securitron Price Book
- 2021 Securitron Product Catalog
- 2022 Securitron Price Book
- 2023 Securitron Price Book (effective 4.17.2023)
- M32 Magnalock Environment Product Declaration (EPD)
- M32 Magnalock Environment Product Declaration (EPD)
- M62 Magnalock – Environmental Product Declaration (EPD)
- M62 Magnalock – Environmental Product Declaration (EPD)
- Securitron GL1 Gate Lock Certificate of Compliance
- Securitron GL1 Gate Lock Sell Sheet
- Securitron GL1 Gate Locks Catalog Page
- Securitron GL1 Gate Locks Gate & Fence Brochure
- Securitron GL1 Gate Locks Operating Manual
- Securitron GL1 Gate Locks Quick Start Installation Instructions
- Securitron Specialty Magnalocks Cut Sheet
