2 Inch Mortise Cylinder by Corbin Russwin – High Security Door Hardware

Description

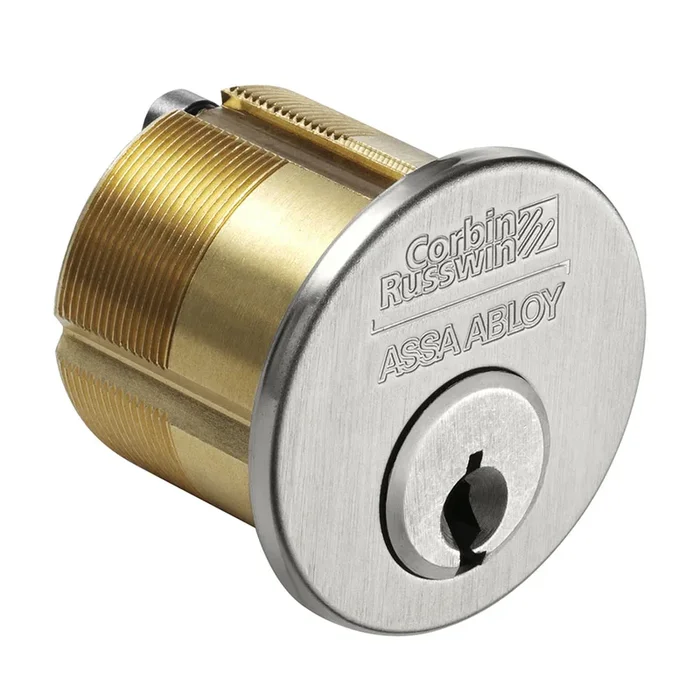

Corbin Russwin 1000-200-A01-6-77B1 626 2″ Mortise Cylinder

Corbin Russwin 1000-200-A01-6-77B1 626 2 Inch Mortise Cylinder delivers exceptional security and reliability for various mortise applications. Crafted from solid brass, this 2-inch cylinder features the 77B1 keyway and is designed with a Cloverleaf Cam (A01) to ensure seamless operation. Its satin chrome finish not only provides a sleek appearance but also enhances durability against wear and tear. Ideal for building professionals and knowledgeable homeowners alike, this mortise cylinder is part of the Conventional Cylinders series, offering a full range of keyways suitable for mortise, rim, deadbolt, and component cylinders. With a 6-pin design, this model ensures enhanced security while granting flexibility in keying options, as it comes blank and ready for customization. The product is BAA qualified and proudly made in the USA, ensuring high-quality craftsmanship. It comes with a limited one-year warranty, offering peace of mind for your investment. Weighing just 0.6 lbs, the Corbin Russwin Mortise Cylinder can be easily shipped via UPS, making it a convenient choice for your hardware needs. Enhance your security solutions with this dependable and versatile mortise cylinder from Corbin Russwin.

2 Inch Mortise Cylinder

2 In. Mortise Cylinder, 77B1 Keyway A01 Cloverleaf Cam, Satin Chrome

Corbin Russwin Mortise Cylinders are made from solid brass and are designed to work in all mortise cylinder applications. They are available in lengths ranging from 1″ to 3-3/4″ and offer a large variety of cams to work in any application. 1″ Cylinders are available 5-Pin only, 1-1/8″ Cylinders are 6-Pin and 7-Pin is available in cylinders 1-1/4 through 3″.

Conventional Cylinders: Full range of keyways for mortise, rim, deadbolt and component cylinders.

Attributes

Baa Qualified: Yes

Base Material: Brass or Bronze

Cam Number: A01

Cam Type: Corbin Russwin Clover

Country of origin: USA

Cylinder Length: 2 In.

Finish: 626/US26D

Keying: 0 Bitted

Keys: Blank

Limited Warranty: 1 Year

Of Keys: 2

Origin: USA

Pack Height: 2.5″

Pack Height 2: 6″

Pack Length: 4″

Pack Length 2: 16.25″

Pack Qty: 1

Pack Volume: 27.5 in³

Pack Volume 2: 1023.75 in³

Pack Width: 2.75″

Pack Width 2: 10.5″

Pins: 6

Series: Conventional Cylinders

Ship Weight: 0.6 lbs.

Std Keyway: 77B1

Subtype: Mortise Cylinder

Type: Locks, Cylinders, Cores, Keyblanks

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 32

Resources

• Conventional Cylinders Cut Sheet
• Key Systems Catalog
