Description

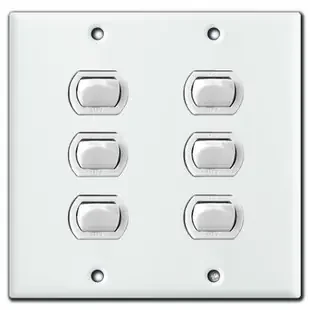

Replace a 6-switch low voltage GE light switch control panel for a 2-gang box featuring 24V 3A switches. The Legrand switches are compatible with vintage GE and Bryant 24V low voltage lighting systems. The new double stacked 6-switch wall plate set will give your room a fresh look. These specialty Despard trigger switches flip back and forth to control your low voltage relays.
Features
- this set fits a 2-gang box
- set includes one 6-hole plate, two straps, and six low voltage light switches
- plates fit wall boxes installed both vertically (screws top/bottom) or horizontally (screws left/right)
- 6-switch plate has an enamel finish on .03″ steel; ULC and UL listed plate made in USA
- includes six Despard momentary contact low voltage trigger switches (curved on sides, flat on top/bottom)
- switches flip back and forth toward the flat sides / screw ends
- switches: 3A, 24V AC/DC 3-wire easy-press switches with crimp connectors; made by Pass & Seymour in Mexico; use with copper or copper-clad wire only
- switches can be wired in parallel to create 3-way switches so that local room switch and control panel switch will both control the room light fixture
- 6-3/8″ W x 4-1/2″ H x 5/32″ D
- Despard hole .687″ H x .906″ W
- Devices spaced .937″ apart on centers
- four matching slot head 5/16″ mounting screws
- switches are crimped to hold in straps that screw into the box; the switchplate screws into the outer set of holes on the straps
